The complete filter is used to filter the air supply. Separation of larger particles of pollutants contained in the air prolongs the service life of devices placed behind the filter – fans, heaters, etc.

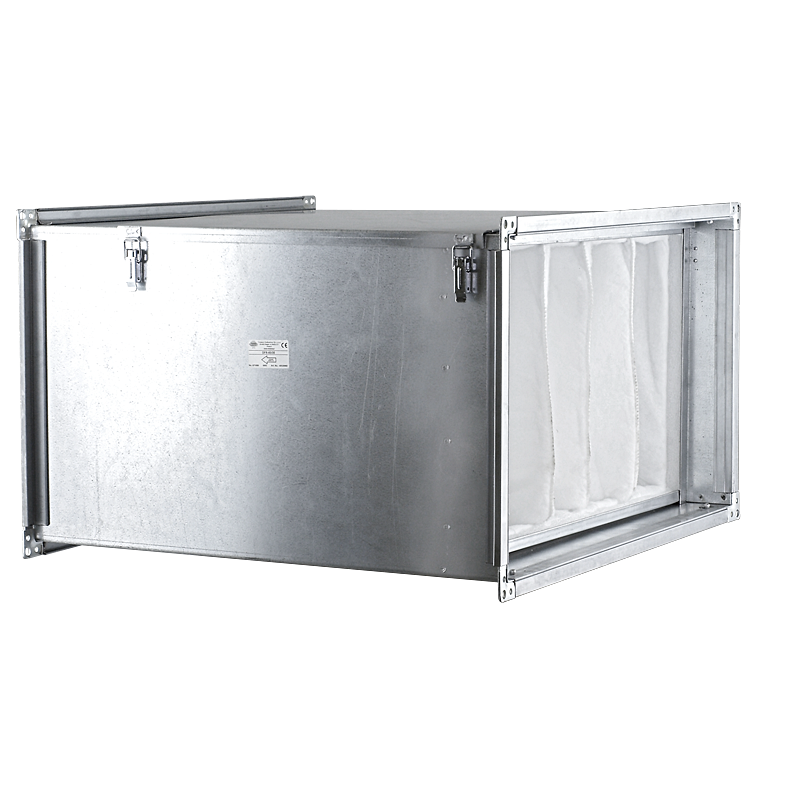

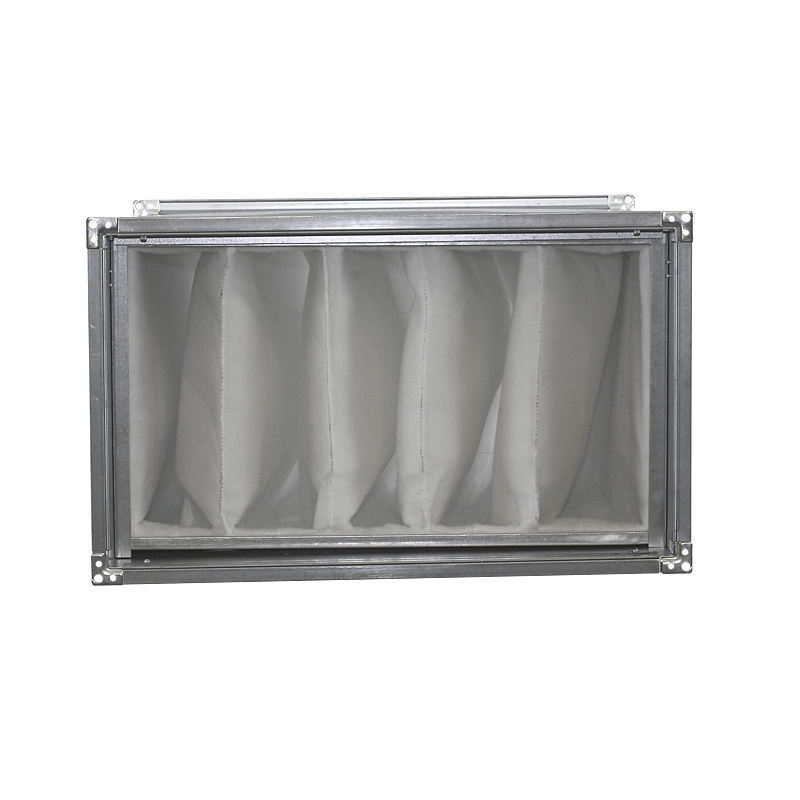

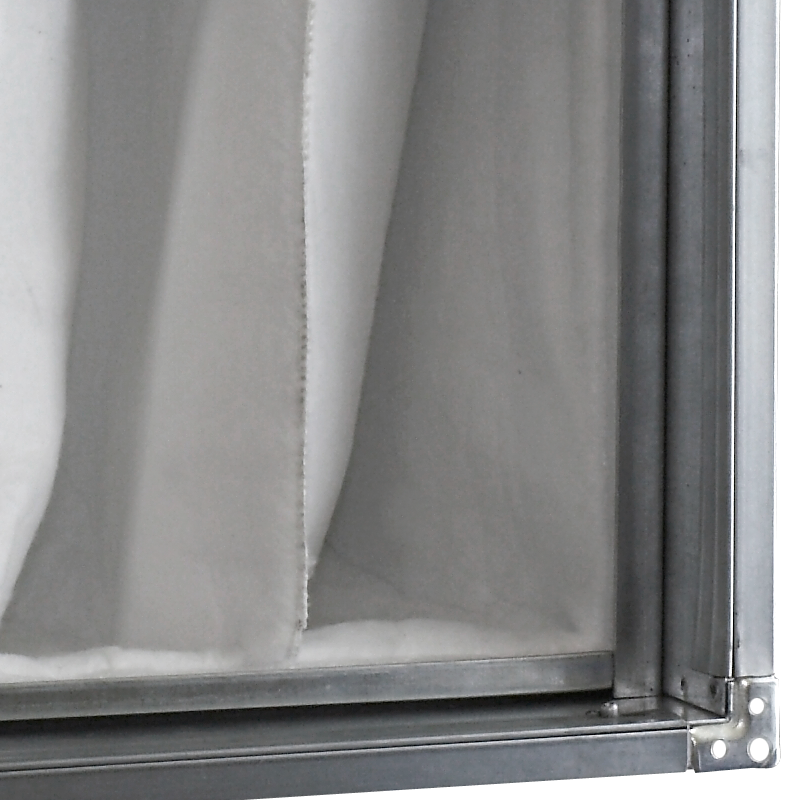

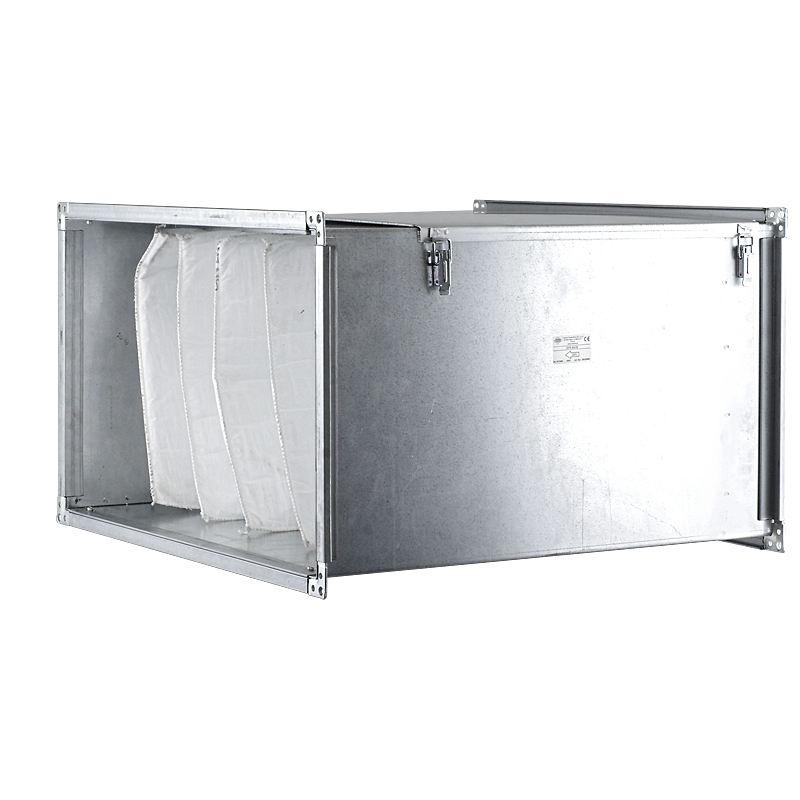

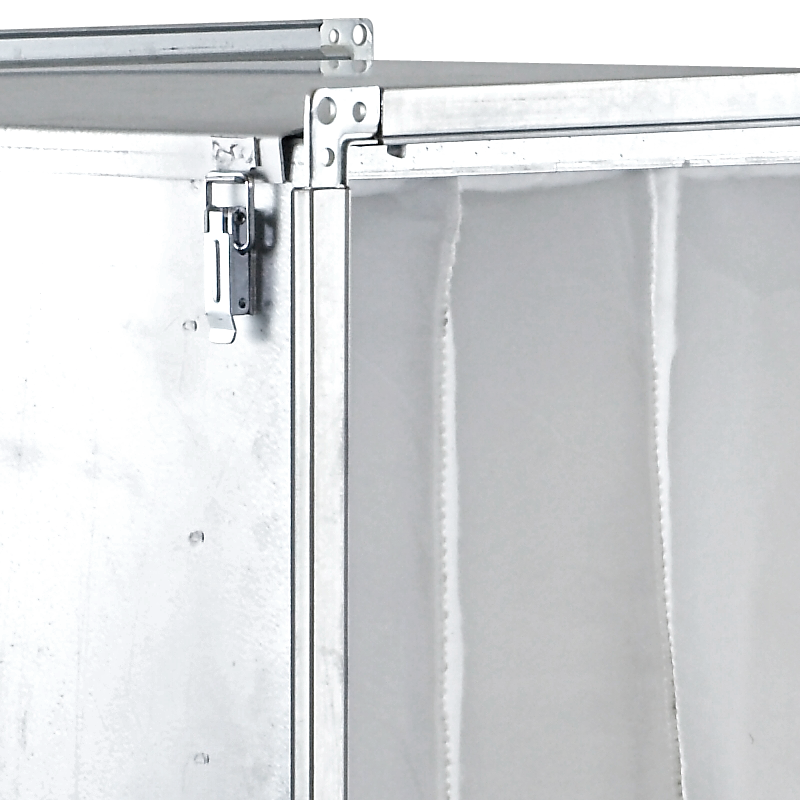

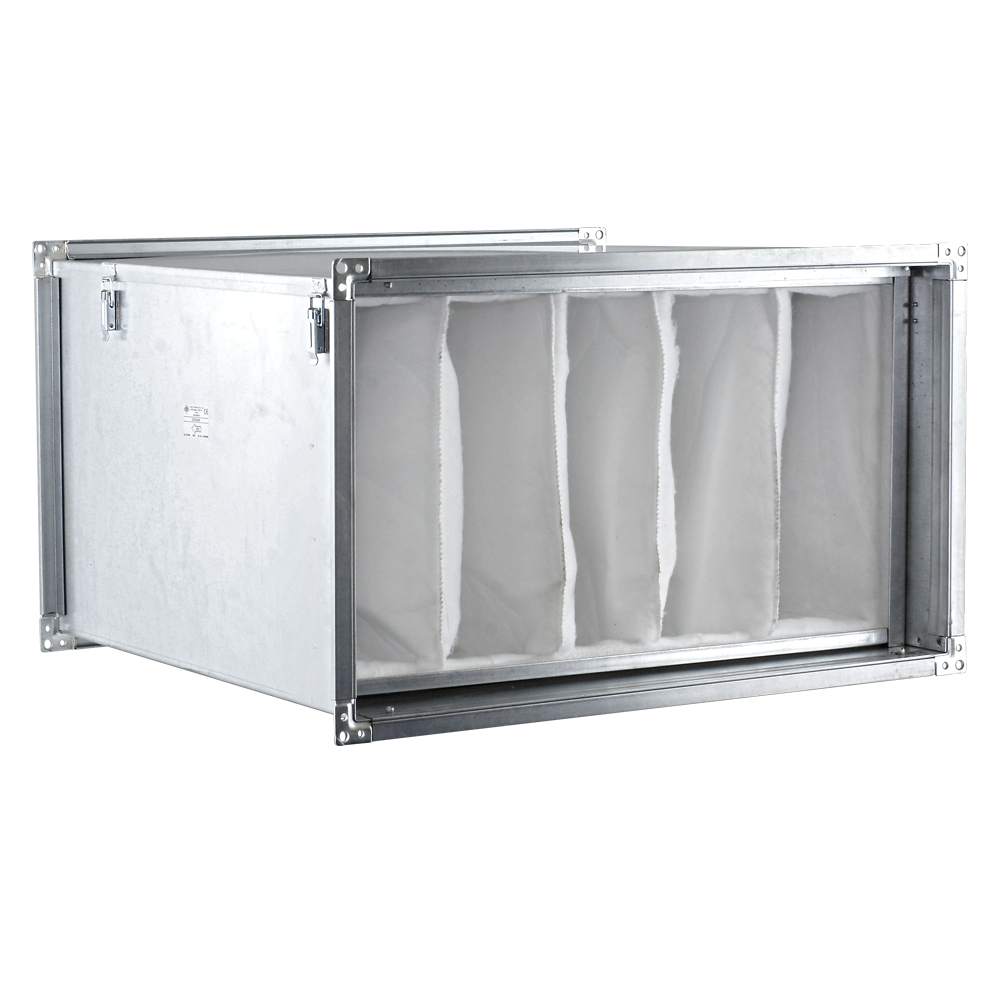

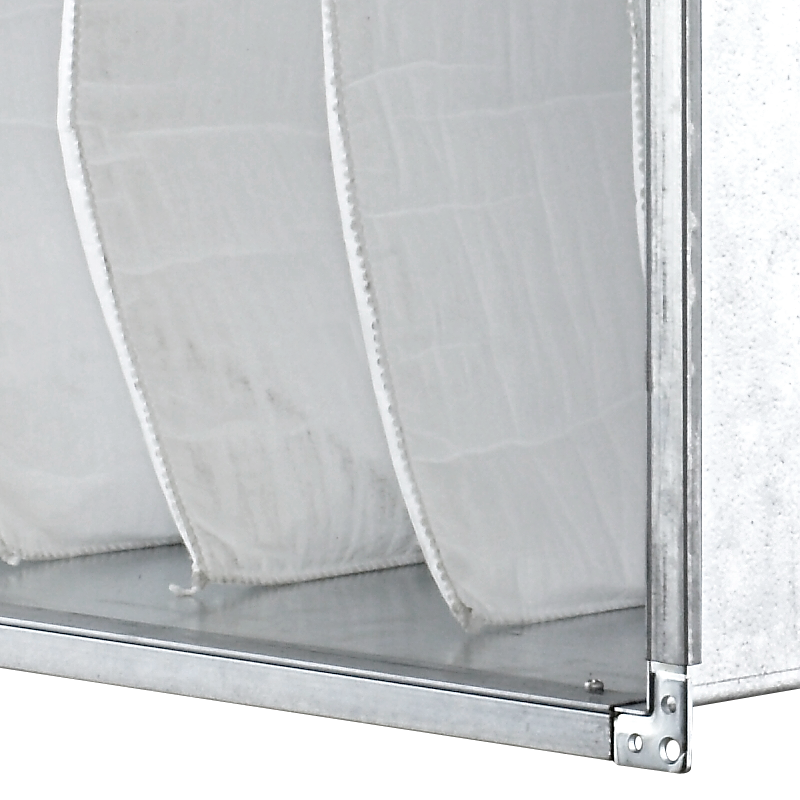

Filter set designed for installation in rectangular duct ventilation. Housing is made of galvanized sheet steel and mounting rings with rubber seals. Packet EU3, EU5, EU7 filter cartridge should be ordered separately.
On request, the device can be supplied in any color from the RAL palette. The filter cartridge should be replaced when the air flow resistance exceeds 250Pa..
Type | A | B | C | D | E | F | G | ØH |
---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | |
DFR-30/15 | 600 | 300 | 148 | 320 | 170 | 340 | 190 | 9 |
DFR-40/20 | 600 | 400 | 198 | 420 | 220 | 440 | 240 | 9 |
DFR-50/25 | 600 | 500 | 248 | 520 | 270 | 540 | 290 | 9 |
DFR-50/30 | 600 | 500 | 298 | 520 | 320 | 540 | 340 | 9 |
DFR-60/30 | 600 | 600 | 298 | 620 | 320 | 640 | 340 | 9 |
DFR-60/35 | 600 | 600 | 348 | 620 | 370 | 640 | 390 | 9 |
DFR-70/40 | 600 | 700 | 398 | 720 | 420 | 740 | 440 | 9 |
DFR-80/50 | 600 | 800 | 498 | 820 | 520 | 840 | 540 | 9 |
DFR-100/50 | 600 | 1000 | 498 | 1020 | 520 | 1040 | 540 | 9 |
