Select fan type
TH EX
ATEX fan

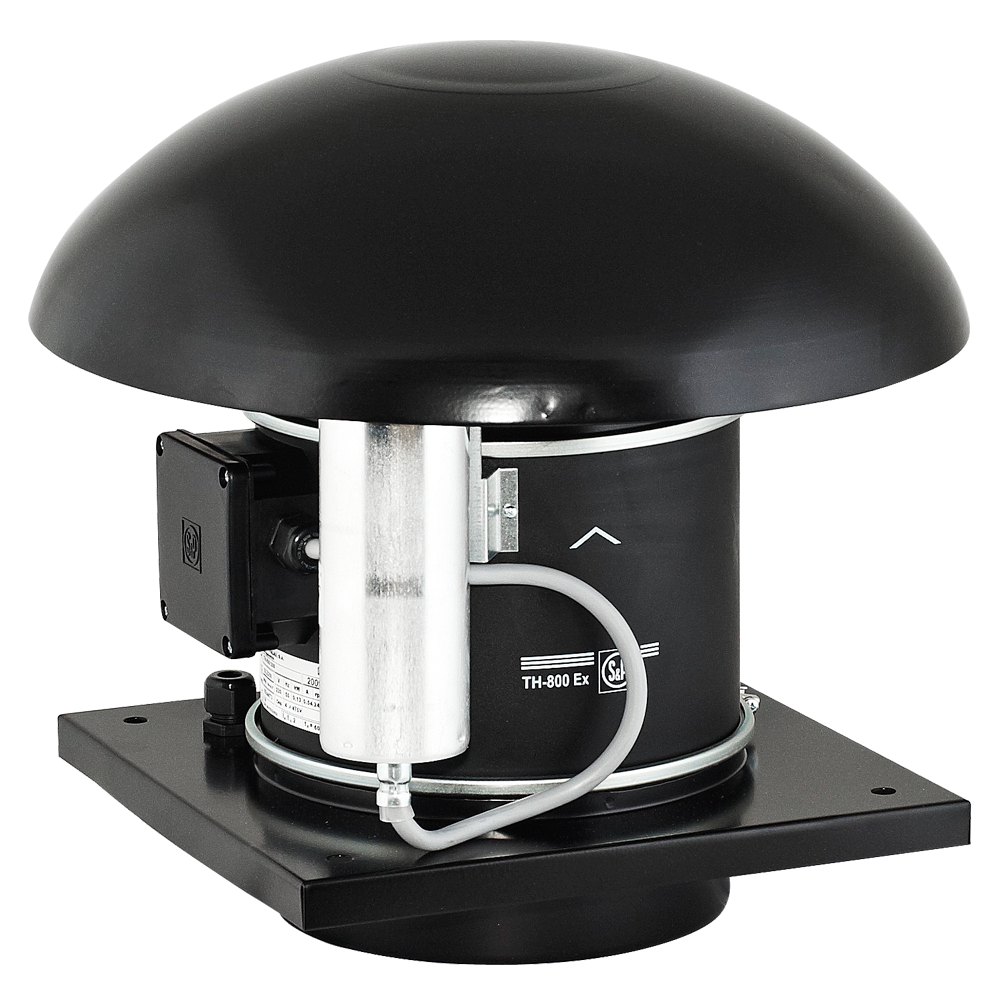

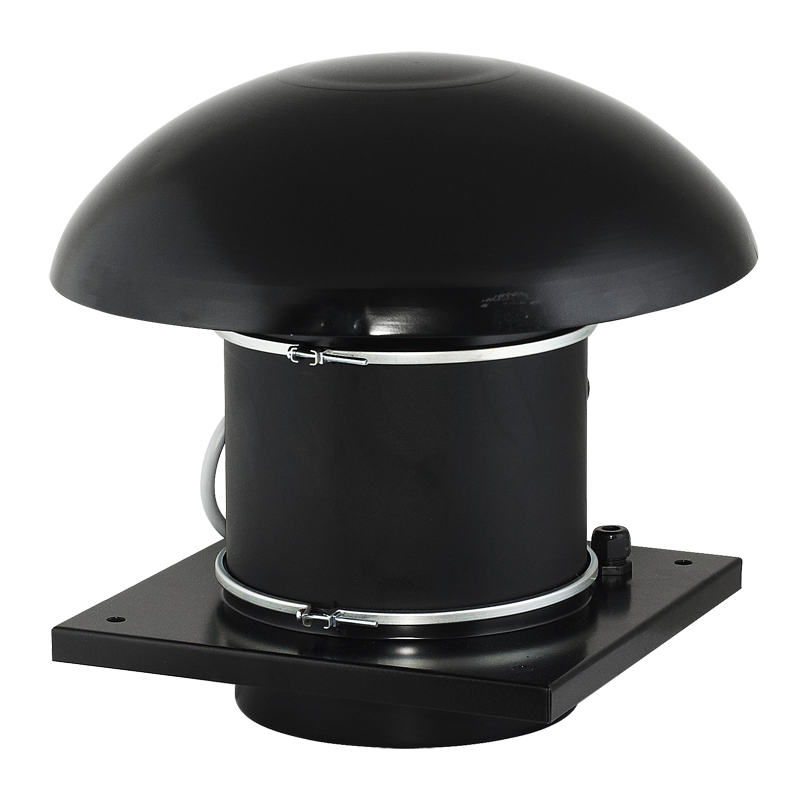

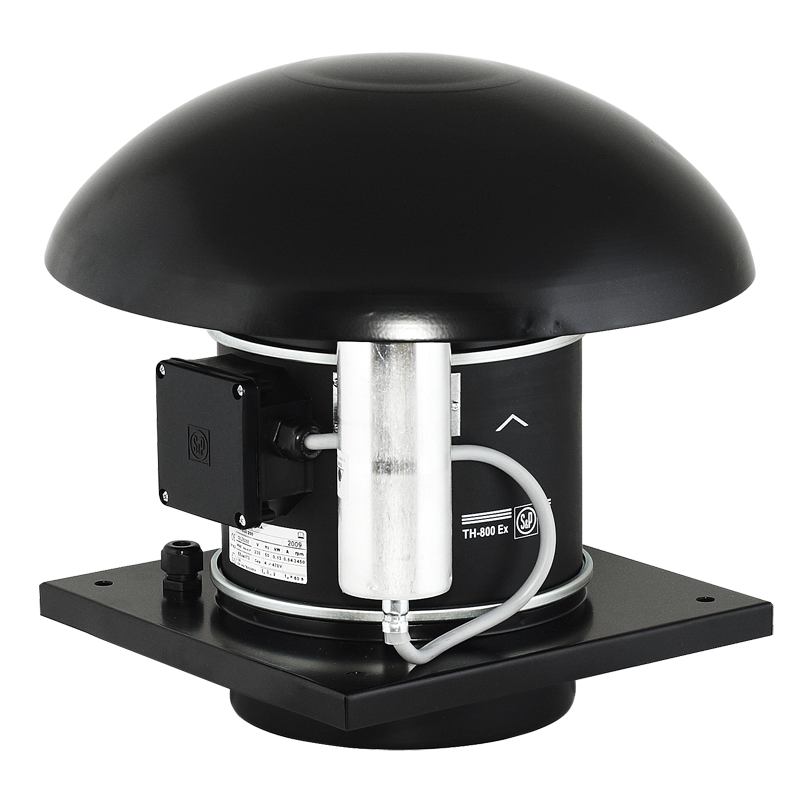

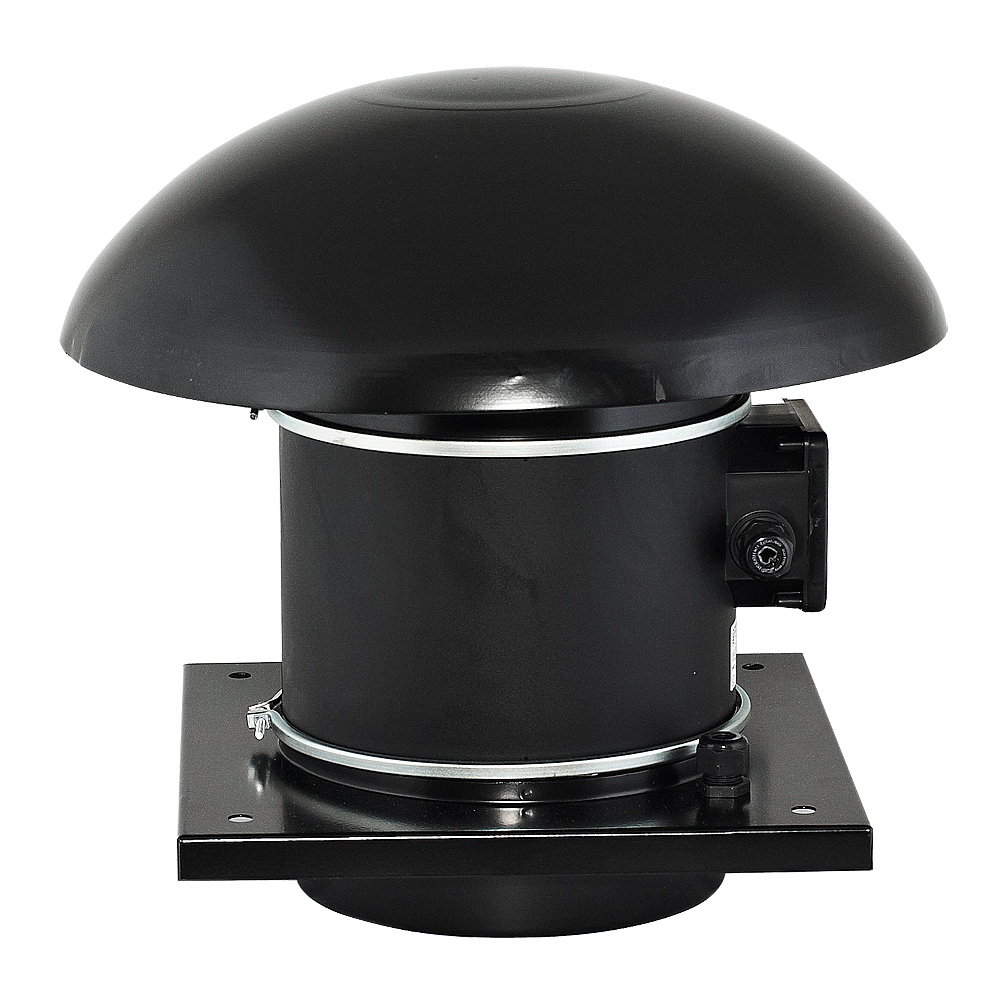

Range of roof mounted mixed flow fans, specially designed for the extraction of potentially hazardous and explosive gases, manufactured from sheet steel protected with black polyester paint coating (except TH-800/200 manufactured from plastic).
Construction
Range of roof mounted mixed flow fans, specially designed for the extraction of potentially hazardous and explosive gases, manufactured from sheet steel protected with black polyester paint coating (except TH-800/200 manufactured from plastic to prevent retention of static electricity, base and cap manufactured from sheet steel protected with black polyester paint coating). Bird-proof guard. Detachable fan unit without demounting duct connections.
Motor
- Single Phase 230V 50 Hz
- IP44 Class B
- ATEX Increased safety-Gas
Designation
- II 2G Ex eb IIB T3 G
Work characteristics
Dimensions
| Type | A | B | C | E | F | G | H | ØD |
|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | |
| TH-800/200 EX | 400 | 300 | 245 | 10.5 | 20 | 312 | 377 | 197.5 |
| TH-1100/250 EX | 546 | 435 | 330 | 12 | 20 | 372 | 457 | 248 |
| TH-1200/315 EX | 735 | 560 | 450 | 12 | 20 | 450 | 544 | 312 |
Additional equipment
