ARC - Axial-flow duct fan

ARC

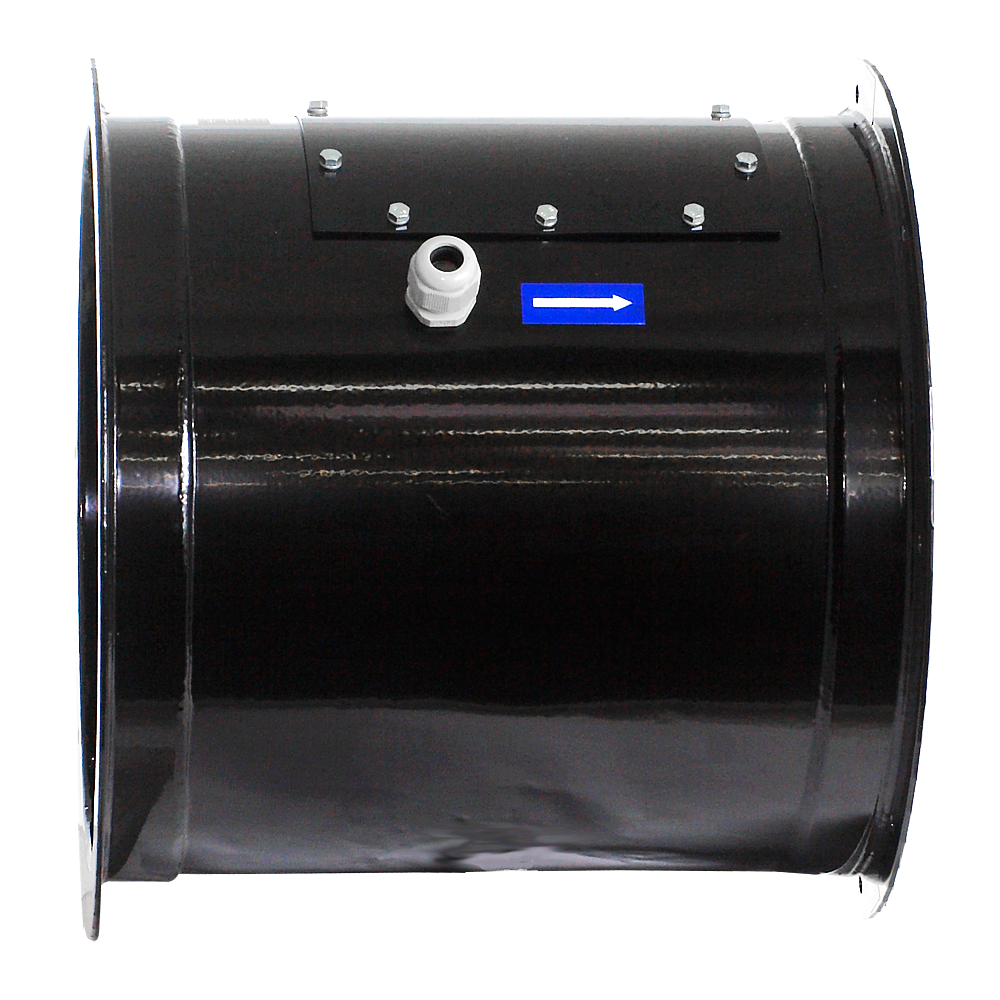

Axial-flow duct fan

ARC reverse fans are used in ventilation installations, where the fan is connected to air ducts from the inlet and outlet. ARC reverse fans are designed exclusively for emergency applications, for short-time work, subject to fire safety requirements.
Contact us

APPLICATION

ARC reverse fans are used in ventilation installations, where the fan is connected to air ducts from the inlet and outlet. ARC reverse fans are designed exclusively for emergency applications, for short-time work, subject to fire safety requirements specified in Directive 89/106 / EC. The ARC fans may be used for:

  • general ventilation systems of commercial and industrial premises,
  • ventilation of storage facilities,
  • ventilation of garages, public utility buildings, etc.

CONSTRUCTION

  • Axial fan with direct drive designed for duct mounting in the horizontal position,
  • The housing is made of welded steel sheet covered with powder paint,
  • The rotor is made of glass-fibre reinforced polypropylene and is dynamically balanced according to ISO 1940-1,
  • The hub is made of aluminium,
  • The fans are designed for use within the temperature range of -200C to +400C,
  • On request, we could supply the equipment tailored to individual customer needs, including: fans designed for use at temperatures outside the range -200C to +400C, provided with non-standard housing (adjusted length or diameter, made of stainless or galvanized steel),
  • The fans can be supplied in any colour from RAL palette (RAL 9005 – black is the standard colour).

MOTOR

  • Asynchronous, three-phase 230/400V, 50Hz and 400/690V, 50Hz,
  • Insulation class F,
  • Degree of protection IP 55,
  • The motors are made in accordance with EC 60072 and 60034 standards, and have been awarded with a CE mark,
  • On request, we can deliver motors provided with an independent cooling system and/or with sensors,
  • The three-phase motors are driven by frequency in range 25-50Hz.

Technical assistance

Catalog card

Choose a fan www.fanselectoronline.com

m3/h
Pa

Work characteristics

Dimensions

Type N D_DO D_KO ØA ØB ØC ØE
  mm mm mm mm mm mm mm
ARC/2-250-012T 4 360 150 250 292 327 10
ARC/2-250A-018T 4 360 150 250 292 327 10
ARC/2-250B-018T 4 360 150 250 292 327 10
ARC/2-250C-018T 4 360 150 250 292 327 10
ARC/2-250-025T 4 360 150 250 292 327 10
ARC/4-250A-012T 4 360 150 250 292 327 10
ARC/4-250B-012T 4 360 150 250 292 327 10
ARC/4-250C-012T 4 360 150 250 292 327 10
ARC/4-250D-012T 4 360 150 250 292 327 10
ARC/4-250E-012T 4 360 150 250 292 327 10
ARC/2-315-025T 8 360 150 315 355 386 10
ARC/2-315A-037T 8 360 150 315 355 386 10
ARC/2-315B-037T 8 360 150 315 355 386 10
ARC/2-315A-055T 8 360 150 315 355 386 10
ARC/2-315B-055T 8 360 150 315 355 386 10
ARC/4-315A-012T 8 360 150 315 355 386 10
ARC/4-315B-012T 8 360 150 315 355 386 10
ARC/4-315-018T 8 360 150 315 355 386 10
ARC/4-315A-025T 8 360 150 315 355 386 10
ARC/4-315B-025T 8 360 150 315 355 386 10
ARC/2-355A-037T 8 400 200 350 395 426 10
ARC/2-355B-037T 8 400 200 350 395 426 10
ARC/2-355-055T 8 400 200 350 395 426 10
ARC/2-355A-075T 8 400 200 350 395 426 10
ARC/2-355B-075T 8 400 200 350 395 426 10
ARC/4-355A-012T 8 400 200 350 395 426 10
ARC/4-355B-012T 8 400 200 350 395 426 10
ARC/4-355-018T 8 400 200 350 395 426 10
ARC/4-355-025T 8 400 200 350 395 426 10
ARC/4-355-037T 8 400 200 350 395 426 10
ARC/2-400-055T 8 450 250 400 450 487 12
ARC/2-400-075T 8 450 250 400 450 487 12
ARC/2-400-110T 8 450 250 400 450 487 12
ARC/2-400-150T 8 450 250 400 450 487 12
ARC/4-400A-018T 8 450 250 400 450 487 12
ARC/4-400B-018T 8 450 250 400 450 487 12
ARC/4-400C-018T 8 450 250 400 450 487 12
ARC/4-400-025T 8 450 250 400 450 487 12
ARC/4-400-037T 8 450 250 400 450 487 12
ARC/2-450-110T 8 450 250 450 500 537 12
ARC/2-450-150T 8 450 250 450 500 537 12
ARC/2-450-220T 8 450 250 450 500 537 12
ARC/2-450-300T 8 450 250 450 500 537 12
ARC/4-450-018T 8 450 250 450 500 537 12
ARC/4-450-025T 8 450 250 450 500 537 12
ARC/4-450-037T 8 450 250 450 500 537 12
ARC/4-450-055T 8 450 250 450 500 537 12
ARC/4-450-075T 8 450 250 450 500 537 12
ARC/2-500-150T 12 500 300 500 560 595 12
ARC/2-500-220T 12 500 300 500 560 595 12
ARC/2-500-300T 12 500 300 500 560 595 12
ARC/4-500-018T 12 500 300 500 560 595 12
ARC/4-500-025T 12 500 300 500 560 595 12
ARC/4-500-037T 12 500 300 500 560 595 12
ARC/4-500-055T 12 500 300 500 560 595 12
ARC/4-500-075T 12 500 300 500 560 595 12
ARC/4-560-037T 12 550 300 560 620 655 12
ARC/4-560-055T 12 550 300 560 620 655 12
ARC/4-560-075T 12 550 300 560 620 655 12
ARC/4-560-110T 12 550 300 560 620 655 12
ARC/4-560-150T 12 550 300 560 620 655 12
ARC/6-560-018T 12 550 300 560 620 655 12
ARC/6-560-025T 12 550 300 560 620 655 12
ARC/6-560-037T 12 550 300 560 620 655 12
ARC/6-560-055T 12 550 300 560 620 655 12
ARC/6-560-075T 12 550 300 560 620 655 12
ARC/4-630-037T 12 550 400 630 690 725 12
ARC/4-630-055T 12 550 400 630 690 725 12
ARC/4-630-075T 12 550 400 630 690 725 12
ARC/4-630-110T 12 550 400 630 690 725 12
ARC/4-630-150T 12 550 400 630 690 725 12
ARC/6-630-018T 12 550 400 630 690 725 12
ARC/6-630-025T 12 550 400 630 690 725 12
ARC/6-630-037T 12 550 400 630 690 725 12
ARC/6-630-055T 12 550 400 630 690 725 12
ARC/6-630-075T 12 550 400 630 690 725 12
ARC/4-710-055T 16 550 400 710 770 806 12
ARC/4-710-075T 16 550 400 710 770 806 12
ARC/4-710-110T 16 550 400 710 770 806 12
ARC/4-710-150T 16 550 400 710 770 806 12
ARC/4-710-220T 16 550 400 710 770 806 12
ARC/6-710-025T 16 550 400 710 770 806 12
ARC/6-710-037T 16 550 400 710 770 806 12
ARC/6-710-055T 16 550 400 710 770 806 12
ARC/6-710-075T 16 550 400 710 770 806 12
ARC/6-710-110T 16 550 400 710 770 806 12
ARC/4-800-075T 12 800 400 800 860 896 16
ARC/4-800-110T 12 800 400 800 860 896 16
ARC/4-800-150T 12 800 400 800 860 896 16
ARC/4-800-220T 12 800 400 800 860 896 16
ARC/4-800-300T 12 800 400 800 860 896 16
ARC/4-800-400T 12 800 400 800 860 896 16
ARC/4-800-550T 12 800 400 800 860 896 16
ARC/4-800-750T 12 800 400 800 860 896 16
ARC/6-800-037T 12 800 400 800 860 896 16
ARC/6-800-055T 12 800 400 800 860 896 16
ARC/6-800-075T 12 800 400 800 860 896 16
ARC/6-800-110T 12 800 400 800 860 896 16
ARC/6-800-150T 12 800 400 800 860 896 16
ARC/4-900-110T 12 800 400 900 950 1000 12
ARC/4-900-150T 12 800 400 900 950 1000 12
ARC/4-900-220T 12 800 400 900 950 1000 12
ARC/4-900-300T 12 800 400 900 950 1000 12
ARC/4-900-400T 12 800 400 900 950 1000 12
ARC/4-900-550T 12 800 400 900 950 1000 12
ARC/4-900-750T 12 800 400 900 950 1000 12
ARC/6-900-055T 12 800 400 900 950 1000 12
ARC/6-900-075T 12 800 400 900 950 1000 12
ARC/6-900-110T 12 800 400 900 950 1000 12
ARC/6-900-150T 12 800 400 900 950 1000 12
ARC/6-900-220T 12 800 400 900 950 1000 12
ARC/4-1000-300T 12 850 450 1000 1100 1100 12
ARC/4-1000-400T 12 850 450 1000 1100 1100 12
ARC/4-1000-550T 12 850 450 1000 1100 1100 12
ARC/4-1000-750T 12 850 450 1000 1100 1100 12
ARC/4-1000-1100T 12 850 450 1000 1100 1100 12
ARC/4-1000-1500T 12 850 450 1000 1100 1100 12
ARC/6-1000-075T 12 850 450 1000 1100 1100 12
ARC/6-1000-110T 12 850 450 1000 1100 1100 12
ARC/6-1000-150T 12 850 450 1000 1100 1100 12
ARC/6-1000-220T 12 850 450 1000 1100 1100 12
ARC/6-1000-300T 12 850 450 1000 1100 1100 12
ARC/4-1250-1100T 16 900 450 1250 1350 1400 12
ARC/4-1250-1500T 16 900 450 1250 1350 1400 12
ARC/4-1250-2200T 16 900 450 1250 1350 1400 12
ARC/4-1250-3000T 16 900 450 1250 1350 1400 12
ARC/4-1250-3700T 16 900 450 1250 1350 1400 12
ARC/6-1250-300T 16 900 450 1250 1350 1400 12
ARC/6-1250-400T 16 900 450 1250 1350 1400 12
ARC/6-1250-550T 16 900 450 1250 1350 1400 12
ARC/6-1250-750T 16 900 450 1250 1350 1400 12
ARC/6-1250-1100T 16 900 450 1250 1350 1400 12
ARC/6-1500A-1500T 24 1000 500 1500 1580 1650 16
ARC/6-1500B-1500T 24 1000 500 1500 1580 1650 16
ARC/6-1500-2200T 24 1000 500 1500 1580 1650 16
ARC/6-1500-3000T 24 1000 500 1500 1580 1650 16
ARC/6-1500-3700T 24 1000 500 1500 1580 1650 16
ARC/8-1500-550T 24 1000 500 1500 1580 1650 16
ARC/8-1500-750T 24 1000 500 1500 1580 1650 16
ARC/8-1500-1100T 24 1000 500 1500 1580 1650 16
ARC/8-1500-1500T 24 1000 500 1500 1580 1650 16
ARC/8-1500-1850T 24 1000 500 1500 1580 1650 16
