GMT-HT

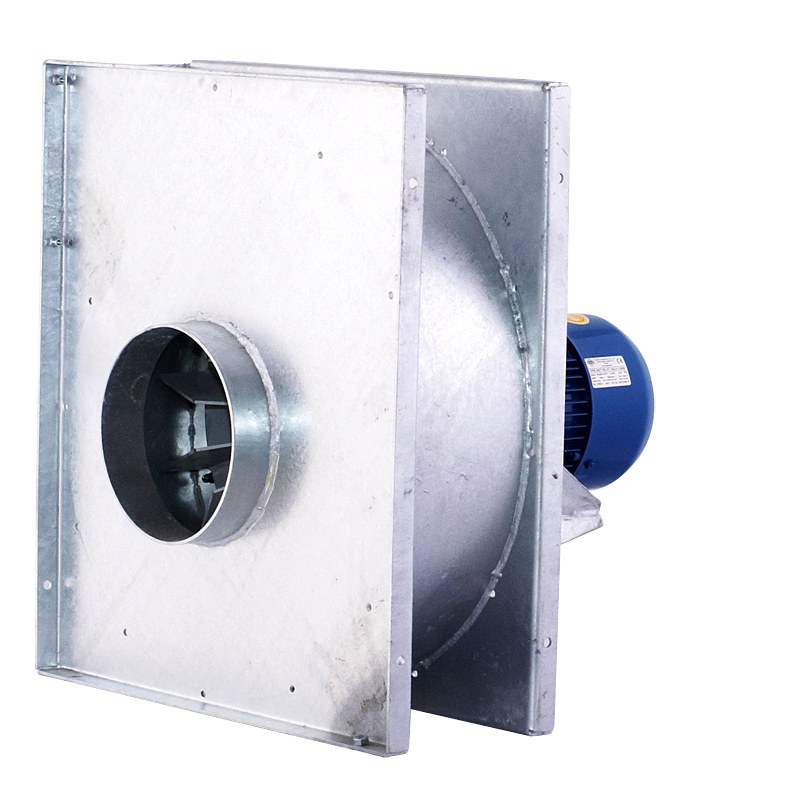

Centrifugal fan
Medium-pressure centrifugal fan with direct drive, designed for extraction of polluted air with a maximum temperature of 250oC.
Can be painted in a color
other than standard
other than standard
APPLICATION
Fan designed for polluted air exhaust systems with a maximum temperature of 250oC.
CONSTRUCTION
- medium-pressure, centrifugal fan with direct drive,
- impeller welded from steel sheet with straight blades, protected by primer RAL 7035, dynamically balanced in accordance with ISO1940-1,
- hot dipped galvanized welded sheet steel housing,

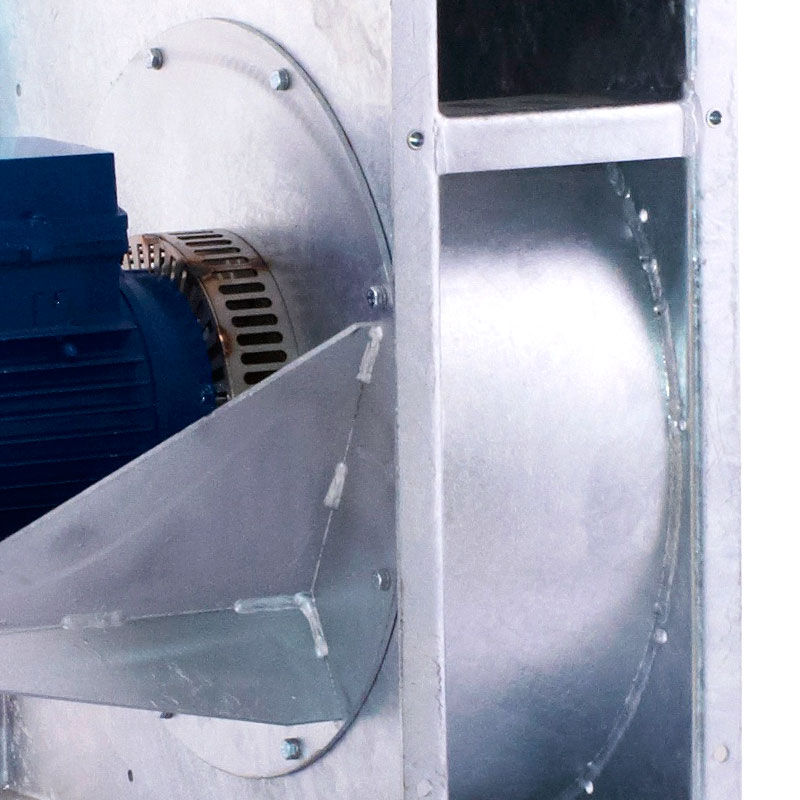

- cooling wing between housing and motor,
- maximum medium temperature 250oC,
- ambient temperature range from -20oC to +40oC,
- standard RD90 positions in models 100 and 130,
- standard LG270 positions in models 200 and 300.
MOTOR
- asynchronous, three-phase, 230/400V 50Hz (power to 3kW),
- efficiency class IE3,
- degree of protection IP55,
- insulation class F,
- adapted for frequency converter.
SPECIAL EXECUTIONS
- different positions LG/RD,
- impeller, housing and support made of stainless steel 1.4301,
- impeller, housing and support made of acid-proof steel 1.4404,
- different motor voltage and frequency,
- different motor degree of protection,
- motor equipped with sensors or additional cooling,
- ambient temperature range below -20oC and above +40oC.
Work characteristics
Dimensions
| Type | A | B | C | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| GMT-HT-100-075T | 413 | 463 | 432 | 192 | 201 | 110 | 100 | 137 | 110 |
| GMT-HT-130-110T | 413 | 463 | 450 | 192 | 201 | 110 | 100 | 137 | 110 |
| Type | K | L | S | T | X | A1 | B1 |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | |
| GMT-HT-100-075T | 160 | 145 | 392 | 80 | 4 | 363 | 423 |
| GMT-HT-130-110T | 160 | 145 | 392 | 80 | 4 | 363 | 423 |
| Type | E1 | F1 | N1 | N2 | N3 | N4 | N5 |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | |
| GMT-HT-100-075T | 50 | 50 | 12 | 20 | 80 | 142 | 149 |
| GMT-HT-130-110T | 50 | 50 | 12 | 20 | 80 | 142 | 149 |
| Type | N6 | X1 | X2 | ØD | ØO | ØO1 | ØO2 |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | |
| GMT-HT-100-075T | 162 | 2 | 4 | 125 | M6 | 9 | 9 |
| GMT-HT-130-110T | 162 | 2 | 4 | 125 | M6 | 9 | 9 |
| Type | A | B | C | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| GMT-HT-200-150T | 506 | 574 | 481 | 223 | 323 | 110 | 140 | 140 | 150 |
| GMT-HT-300-300T | 506 | 574 | 517 | 223 | 323 | 140 | 140 | 170 | 150 |
| Type | K | L | S | T | X | A1 | B1 |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | |
| GMT-HT-200-150T | 166 | 180 | 94 | 83 | 4 | 457 | 491 |
| GMT-HT-300-300T | 196 | 190 | 102 | 98 | 4 | 457 | 491 |
| Type | E1 | F1 | N1 | N2 | N3 | N4 | N5 |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | |
| GMT-HT-200-150T | 49 | 83 | 12 | 28 | 83 | 138 | 154 |
| GMT-HT-300-300T | 49 | 83 | 12 | 28 | 98 | 168 | 184 |
| Type | N6 | X1 | X2 | ØD | ØO | ØO1 | ØO2 |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | |
| GMT-HT-200-150T | 166 | 2 | 4 | 160 | M6 | 9 | 9 |
| GMT-HT-300-300T | 196 | 2 | 4 | 200 | M6 | 9 | 9 |
