HPB

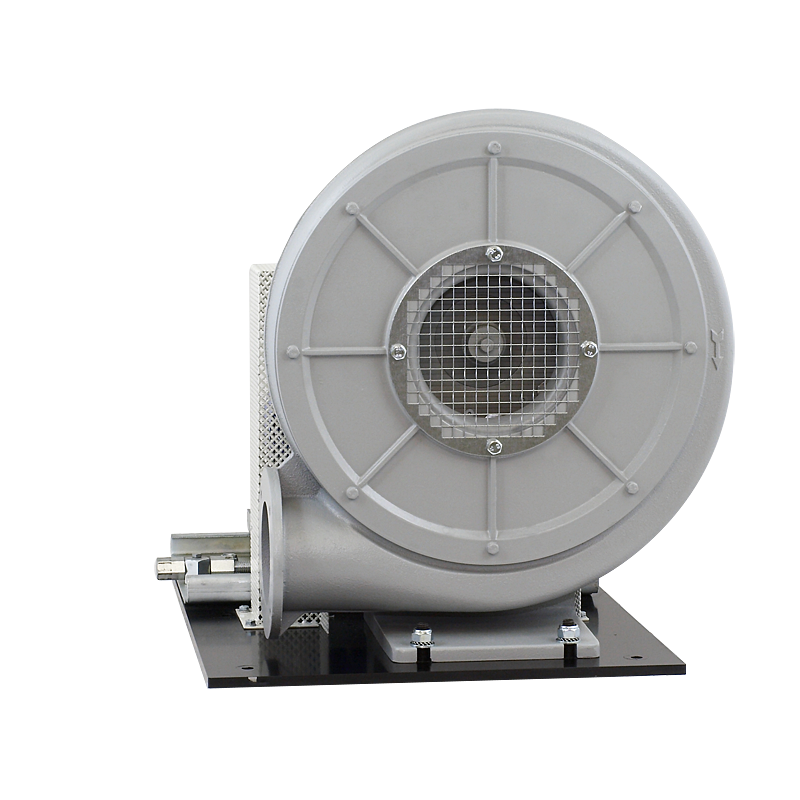

Centrifugal fan
Application
Pneumatic transport systems, blowing in drying systems (e.g. graphic machines and processing plastics), air blowing systems in combustion / thermal processing systems (e.g. melting furnaces), etc.
Construction
High-pressure centrifugal fans designed for belt drive. Riveted rotor made of aluminum sheet, with B-type blades. On request, rotors are made of acid-proof sheet metal. Aluminum alloy housing.
The fans are adapted to transport non-aggressive and non-explosive gases without pollution. Complete fans (with a stand, electric motor, belt drive, etc.) are offered as standard.

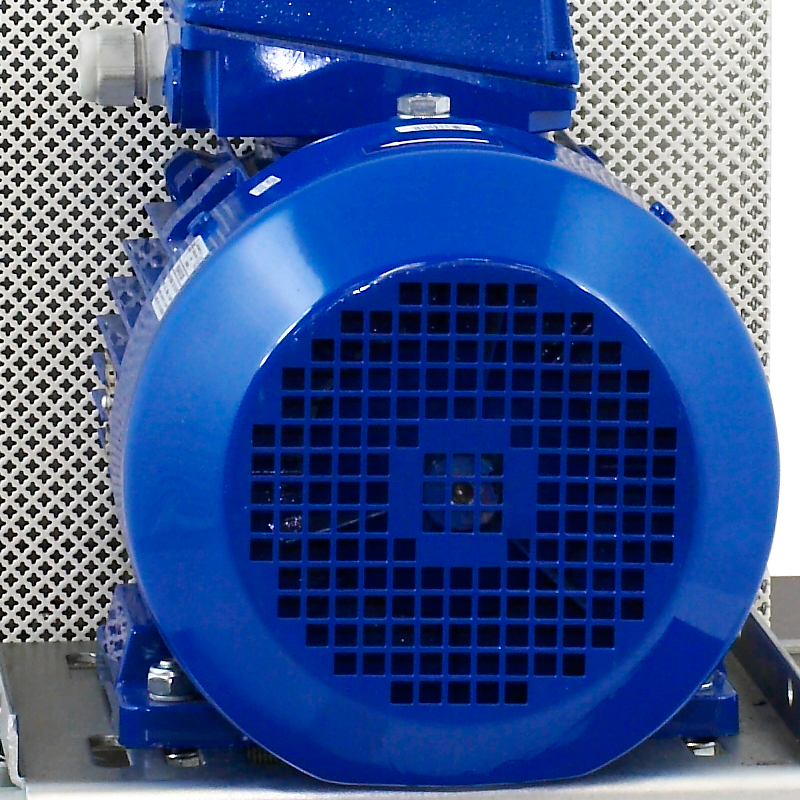

Motor
Electric motor made in accordance with the applicable Directives and efficiency classes, marked with the CE mark. Insulation class - F. Degree of protection - IP55.
Power supply - three-phase 230 / 400V 50Hz, 400V 50Hz or 400 / 690V 50Hz (depending on the motor power).
Fans with motors in other versions: table of special versions.
