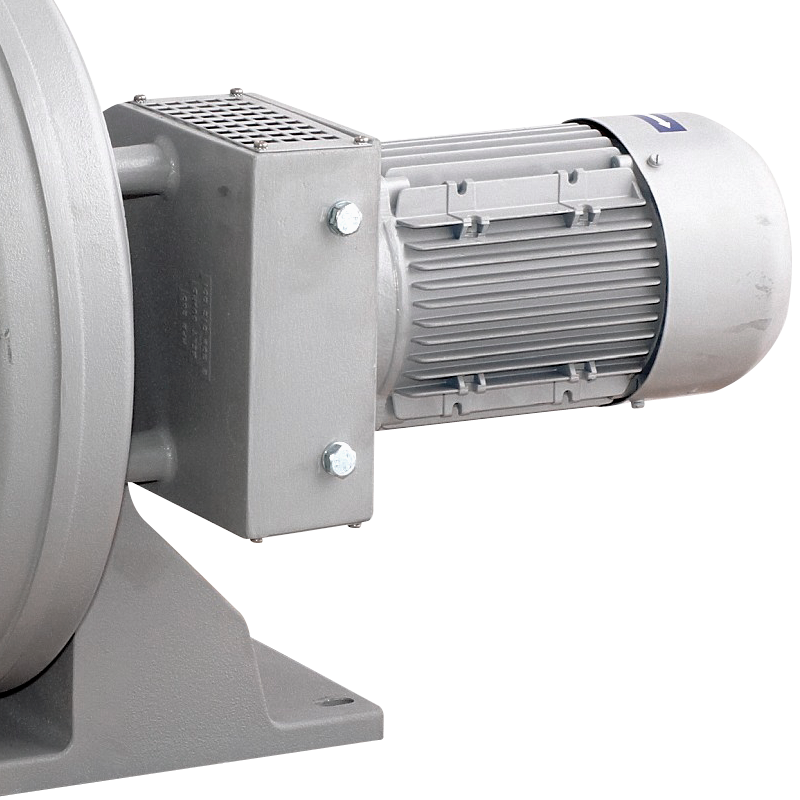

HPBx - Centrifugal fan

HPBx

Centrifugal fan

High-pressure belt-driven radial fan designed for transporting non-aggressive and non-explosive gases without pollution.
Can be painted in a color
other than standard
Contact us

Application

The fan is designed for transport systems of non-aggressive and non-explosive gases without pollution. Typical Applications:

  • pneumatic transport,
  • blowing in drying systems (e.g. graphic machines and processing of plastics),
  • air blowing systems in combustion / thermal treatment systems (e.g. melting furnaces).

Construction

  • Belt driven high pressure centrifugal fan
  • rotor made of aluminum sheet with backward curved blades, dynamically balanced according to ISO 1940-1
  • die-cast aluminum housing
  • galvanized inlet cover
  • the fan is painted gray RAL 7042
  • maximum temperature of the transported medium 110 ° C
  • motor ambient temperature from -20 ° C to + 40 ° C
  • figure LG270

Motor

  • asynchronous, single-phase, 230V, 50Hz
  • asynchronous, three-phase, 230 / 400V, 50Hz
  • degree of protection IP55
  • insulation class F
  • for frequency control

Special versions

  • any LG / RD figure
  • painting in a color other than the standard
  • rotor made of galvanized steel sheet
  • impeller made of stainless steel 1.4301
  • rotor made of acid-resistant steel 1.4404
  • motor for other than standard voltage and power frequency
  • motor with a different degree of IP protection
  • engine equipped with sensors or additional cooling
  • motor ambient temperature below -20°C and above + 40°C

Technical assistance

Choose a fan www.fanselectoronline.com

m3/h
Pa

Work characteristics

Dimensions

Type A B C E F S T
  mm mm mm mm mm mm mm
HPBX-25-40-055S 357 370 454 180 208 93 44
HPBX-25-40-055T 357 370 454 180 208 93 44
HPBX-25-45-075S 357 370 454 180 208 93 44
HPBX-25-45-075T 357 370 454 180 208 93 44
HPBX-25-50-110S 357 370 454 180 208 93 44
HPBX-25-50-110T 357 370 454 180 208 93 44
HPBX-30-39-075S 357 370 469 180 208 93 44
HPBX-30-39-075T 357 370 469 180 208 93 44
HPBX-30-44-110S 357 370 469 180 208 93 44
HPBX-30-44-110T 357 370 469 180 208 93 44
HPBX-30-49-150S 357 370 469 180 208 93 44
HPBX-30-49-150T 357 370 469 180 208 93 44
HPBX-30-61-220T 357 370 469 180 208 93 44
HPBX-200-38-150S 450 514 536 210 290 91 60
HPBX-200-38-150T 450 514 536 210 290 91 60
HPBX-200-43-220T 450 514 536 210 290 91 60
HPBX-200-45-300T 450 514 536 210 290 91 60
HPBX-200-48-300T 450 514 536 210 290 91 60
HPBX-200-51-300T 450 514 536 210 290 91 60
HPBX-260-38-220T 450 514 536 210 290 91 60
HPBX-260-43-300T 450 514 536 210 290 91 60
HPBX-260-45-300T 450 514 536 210 290 91 60
HPBX-260-48-300T 450 514 536 210 290 91 60
Type X Y Z A1 B1 C1 N1
  mm mm mm mm mm mm mm
HPBX-25-40-055S 4 20 12 430 319 223 20
HPBX-25-40-055T 4 20 12 430 319 223 20
HPBX-25-45-075S 4 20 12 430 319 223 20
HPBX-25-45-075T 4 20 12 430 319 223 20
HPBX-25-50-110S 4 20 12 430 319 223 20
HPBX-25-50-110T 4 20 12 430 319 223 20
HPBX-30-39-075S 4 20 12 430 319 243 20
HPBX-30-39-075T 4 20 12 430 319 243 20
HPBX-30-44-110S 4 20 12 430 319 243 20
HPBX-30-44-110T 4 20 12 430 319 243 20
HPBX-30-49-150S 4 20 12 430 319 243 20
HPBX-30-49-150T 4 20 12 430 319 243 20
HPBX-30-61-220T 4 20 12 430 319 243 20
HPBX-200-38-150S 4 13 13 460 401 255 18
HPBX-200-38-150T 4 13 13 460 401 255 18
HPBX-200-43-220T 4 13 13 460 401 255 18
HPBX-200-45-300T 4 13 13 460 401 255 18
HPBX-200-48-300T 4 13 13 460 401 255 18
HPBX-200-51-300T 4 13 13 460 401 255 18
HPBX-260-38-220T 4 13 13 460 401 255 18
HPBX-260-43-300T 4 13 13 460 401 255 18
HPBX-260-45-300T 4 13 13 460 401 255 18
HPBX-260-48-300T 4 13 13 460 401 255 18
Type N2 N3 N4 P1 P2 X1 ØO
  mm mm mm mm mm mm mm
HPBX-25-40-055S 116 170 190 80 120 4 10
HPBX-25-40-055T 116 170 190 80 120 4 10
HPBX-25-45-075S 116 170 190 80 120 4 10
HPBX-25-45-075T 116 170 190 80 120 4 10
HPBX-25-50-110S 116 170 190 80 120 4 10
HPBX-25-50-110T 116 170 190 80 120 4 10
HPBX-30-39-075S 126 170 190 80 120 4 11
HPBX-30-39-075T 126 170 190 80 120 4 11
HPBX-30-44-110S 126 170 190 80 120 4 11
HPBX-30-44-110T 126 170 190 80 120 4 11
HPBX-30-49-150S 126 170 190 80 120 4 11
HPBX-30-49-150T 126 170 190 80 120 4 11
HPBX-30-61-220T 126 170 190 80 120 4 11
HPBX-200-38-150S 168 280 300 180 230 4 10
HPBX-200-38-150T 168 280 300 180 230 4 10
HPBX-200-43-220T 168 280 300 180 230 4 10
HPBX-200-45-300T 168 280 300 180 230 4 10
HPBX-200-48-300T 168 280 300 180 230 4 10
HPBX-200-51-300T 168 280 300 180 230 4 10
HPBX-260-38-220T 168 280 300 180 230 4 10
HPBX-260-43-300T 168 280 300 180 230 4 10
HPBX-260-45-300T 168 280 300 180 230 4 10
HPBX-260-48-300T 168 280 300 180 230 4 10
Type ØD1 ØD2 ØD3 ØO1 Ød1 Ød2 Ød3
  mm mm mm mm mm mm mm
HPBX-25-40-055S 126 139 165 7 65 95 115
HPBX-25-40-055T 126 139 165 7 65 95 115
HPBX-25-45-075S 126 139 165 7 65 95 115
HPBX-25-45-075T 126 139 165 7 65 95 115
HPBX-25-50-110S 126 139 165 7 65 95 115
HPBX-25-50-110T 126 139 165 7 65 95 115
HPBX-30-39-075S 126 139 165 7 100 135 160
HPBX-30-39-075T 126 139 165 7 100 135 160
HPBX-30-44-110S 126 139 165 7 100 135 160
HPBX-30-44-110T 126 139 165 7 100 135 160
HPBX-30-49-150S 126 139 165 7 100 135 160
HPBX-30-49-150T 126 139 165 7 100 135 160
HPBX-30-61-220T 126 139 165 7 100 135 160
HPBX-200-38-150S 126 139 165 7 100 139 165
HPBX-200-38-150T 126 139 165 7 100 139 165
HPBX-200-43-220T 126 139 165 7 100 139 165
HPBX-200-45-300T 126 139 165 7 100 139 165
HPBX-200-48-300T 126 139 165 7 100 139 165
HPBX-200-51-300T 126 139 165 7 100 139 165
HPBX-260-38-220T 138 182 200 7 100 139 165
HPBX-260-43-300T 138 182 200 7 100 139 165
HPBX-260-45-300T 138 182 200 7 100 139 165
HPBX-260-48-300T 138 182 200 7 100 139 165
Type A B C E F S T
  mm mm mm mm mm mm mm
HPBX-300-31-220T 519 573 466 248 320 98 73
HPBX-300-35-300T 519 573 466 248 320 98 73
Type X Y Z A1 B1 C1 N1
  mm mm mm mm mm mm mm
HPBX-300-31-220T 4 13 13 498 430 285 18
HPBX-300-35-300T 4 13 13 498 430 285 18
Type N2 N3 N4 P1 P2 X1 ØO
  mm mm mm mm mm mm mm
HPBX-300-31-220T 168 294 300 180 230 8 10
HPBX-300-35-300T 168 294 300 180 230 8 10
Type ØD1 ØD2 ØD3 ØO1 Ød1 Ød2 Ød3
  mm mm mm mm mm mm mm
HPBX-300-31-220T 162 1182 200 5 125 165 191
HPBX-300-35-300T 162 1182 200 5 125 165 191
