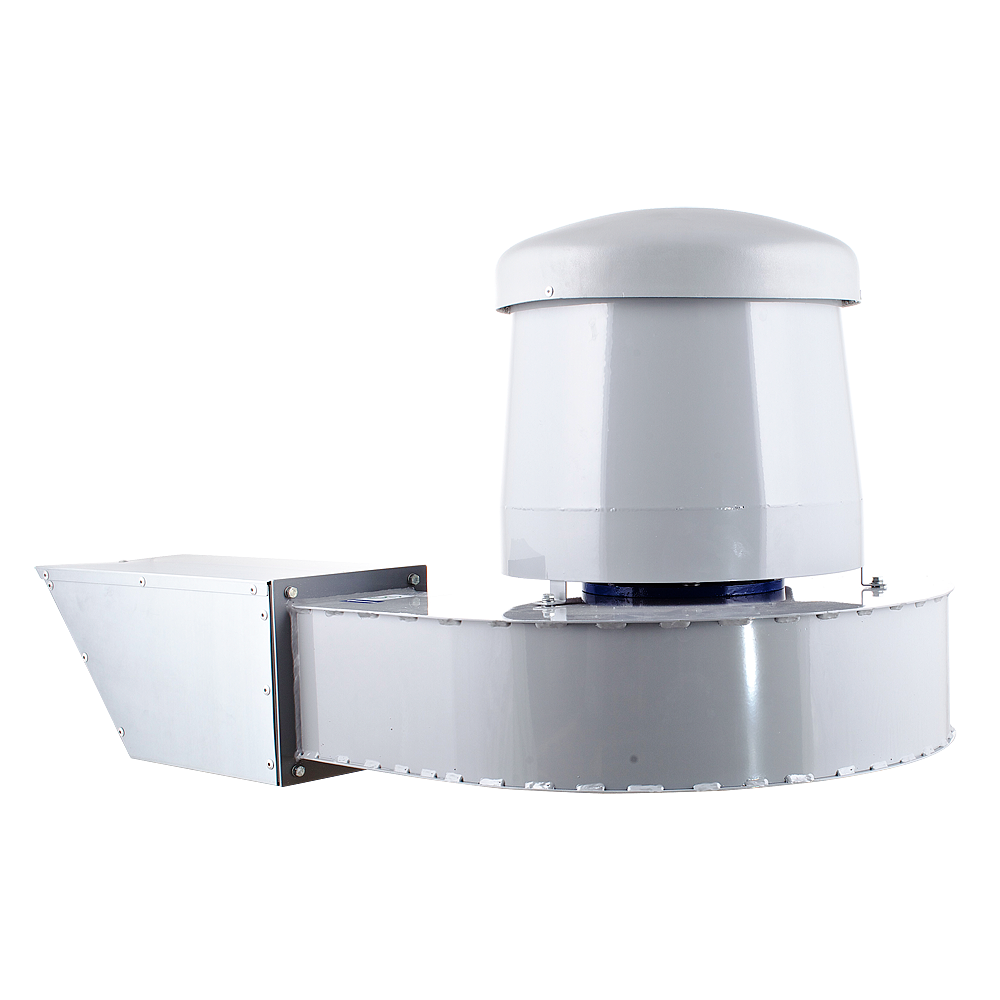

GMT-R
Roof fan
GMT-R roof fans have many applications in contaminated air extraction systems and in pneumatic transport. Typical applications: local exhaust, contaminated air exhaust, vehicle exhaust extraction systems.
Can be painted in a color
other than standard
other than standard
Application
The GMT-R roof fans have many applications in polluted air extraction systems.
Typical Applications:
- local exhaust,
- extracts of polluted air,
- car exhaust extractors.
Construction
- impellers with straight blades, cast from aluminum alloy,
- canopy made of aluminum sheet,
- housing is welded from steel sheet,
- painted gray RAL7042,
- exhaust muffler as standard,
- service switch as standard,
- adapted to work in a vertical position,
- for installation on flat roofs,
- installation on sloping roofs after using appropriate roof bases (RS-R),
- maximum temperature of the pumped medium is 80°C,
- ambient temperature from -15°C to + 40°C (all single-phase models),
- ambient temperature from -30°C to + 60°C (three-phase models from 60 to 200),
- ambient temperature from -20°C to + 40°C (three-phase models from 300 to 500).
Electric motor
- asynchronous, three-phase 230 / 400V, 50Hz or 400 / 690V, 50Hz,
- asynchronous, single-phase 230V, 50Hz (depending on the fan model and motor power),
- insulation class F,
- degree of protection IP55,
- hree-phase motors adapted to frequency regulation in the range of 25-50Hz.
Technical assistance
Catalog card
- User manual 2,49 MB
- Declaration of conformity (CE) 372,58 KB
- Declaration of conformity (CE) 381,73 KB
- Declaration of conformity (CE) 399,34 KB
- Declaration of conformity (CE) 406,20 KB
- Declaration of conformity (CE) 388,94 KB
- CAD drawings 20,30 MB
- Electrical connection diagram 43,01 KB
- Electrical connection diagram 41,24 KB
Work characteristics
Dimensions
| Type | A | B | C | H | I | J | K | x_n | ØD | ØE | ØF | ØG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| GMT-R-60-037S | 810 | 450 | 425 | 215 | 203 | 400 | 93 | 8 | 100 | 125 | 145 | 6 |
| GMT-R-60-037T | 810 | 450 | 425 | 215 | 203 | 400 | 93 | 8 | 100 | 125 | 145 | 6 |
| GMT-R-80-037S | 860 | 450 | 470 | 215 | 203 | 450 | 115 | 8 | 160 | 185 | 205 | 6 |
| GMT-R-80-037T | 860 | 450 | 470 | 215 | 203 | 450 | 115 | 8 | 160 | 185 | 205 | 6 |
| GMT-R-80-055S | 860 | 450 | 470 | 215 | 203 | 450 | 115 | 8 | 160 | 185 | 205 | 6 |
| GMT-R-80-055T | 860 | 450 | 470 | 215 | 203 | 450 | 115 | 8 | 160 | 185 | 205 | 6 |
| GMT-R-100-055S | 815 | 491 | 455 | 245 | 216 | 375 | 101 | 6 | 160 | 194 | 215 | 7 |
| GMT-R-100-055T | 815 | 491 | 455 | 245 | 216 | 375 | 101 | 6 | 160 | 194 | 215 | 7 |
| GMT-R-100-075S | 815 | 491 | 455 | 245 | 216 | 375 | 101 | 6 | 160 | 194 | 215 | 7 |
| GMT-R-100-075T | 815 | 491 | 455 | 245 | 216 | 375 | 101 | 6 | 160 | 194 | 215 | 7 |
| GMT-R-130-075S | 815 | 491 | 455 | 245 | 216 | 375 | 101 | 6 | 160 | 194 | 215 | 7 |
| GMT-R-130-075T | 815 | 491 | 455 | 245 | 216 | 375 | 101 | 6 | 160 | 194 | 215 | 7 |
| GMT-R-130-110S | 815 | 491 | 455 | 245 | 216 | 375 | 101 | 6 | 160 | 194 | 215 | 7 |
| GMT-R-130-110T | 815 | 491 | 455 | 245 | 216 | 375 | 101 | 6 | 160 | 194 | 215 | 7 |
| GMT-R-200-110S | 902 | 579 | 534 | 309 | 222 | 405 | 107 | 6 | 160 | 194 | 215 | 7 |
| GMT-R-200-110T | 902 | 579 | 534 | 309 | 222 | 405 | 107 | 6 | 160 | 194 | 215 | 7 |
| GMT-R-250-150T | 902 | 579 | 534 | 309 | 222 | 405 | 107 | 6 | 160 | 194 | 215 | 7 |
| GMT-R-300-220T | 902 | 579 | 564 | 309 | 222 | 405 | 122 | 8 | 200 | 244 | 280 | 8 |
| GMT-R-400-300T | 902 | 579 | 589 | 309 | 222 | 405 | 122 | 8 | 200 | 244 | 280 | 8 |
| GMT-R-500-400T | 1102 | 585 | 741 | 317 | 222 | 600 | 223 | 8 | 315 | 344 | 368 | 11 |
