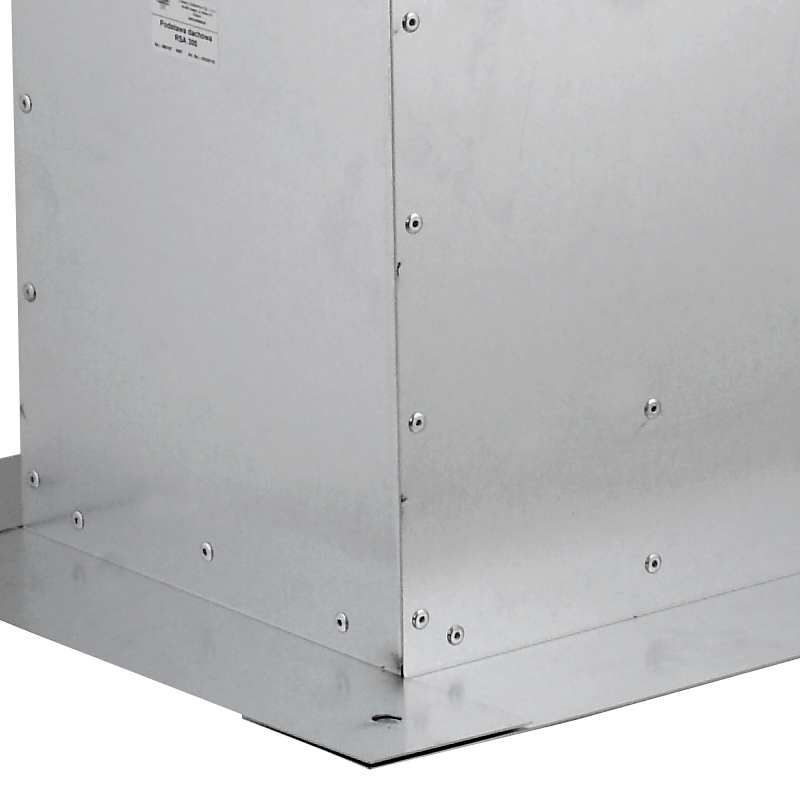

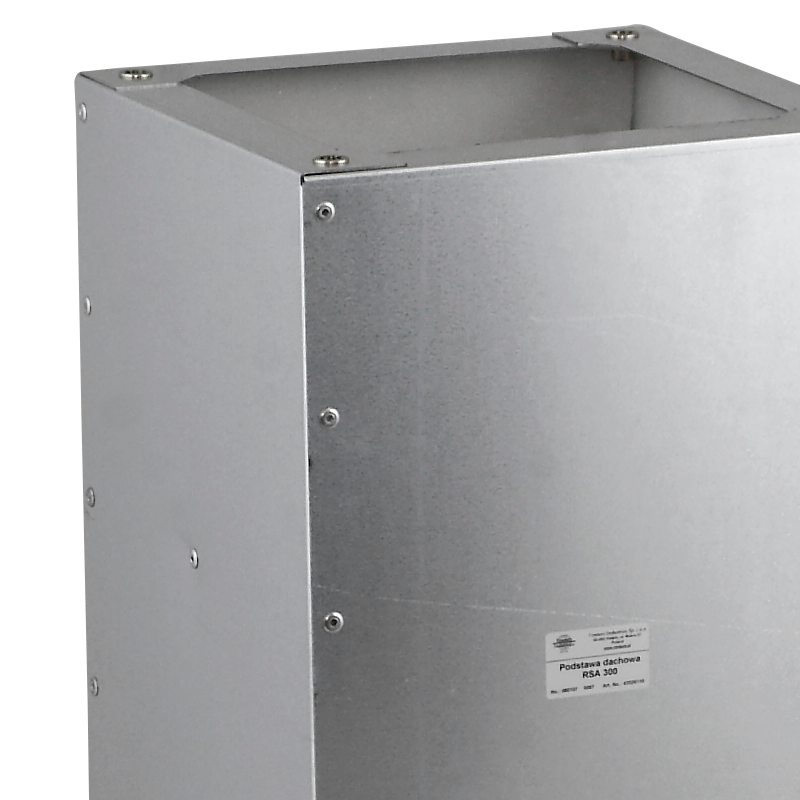

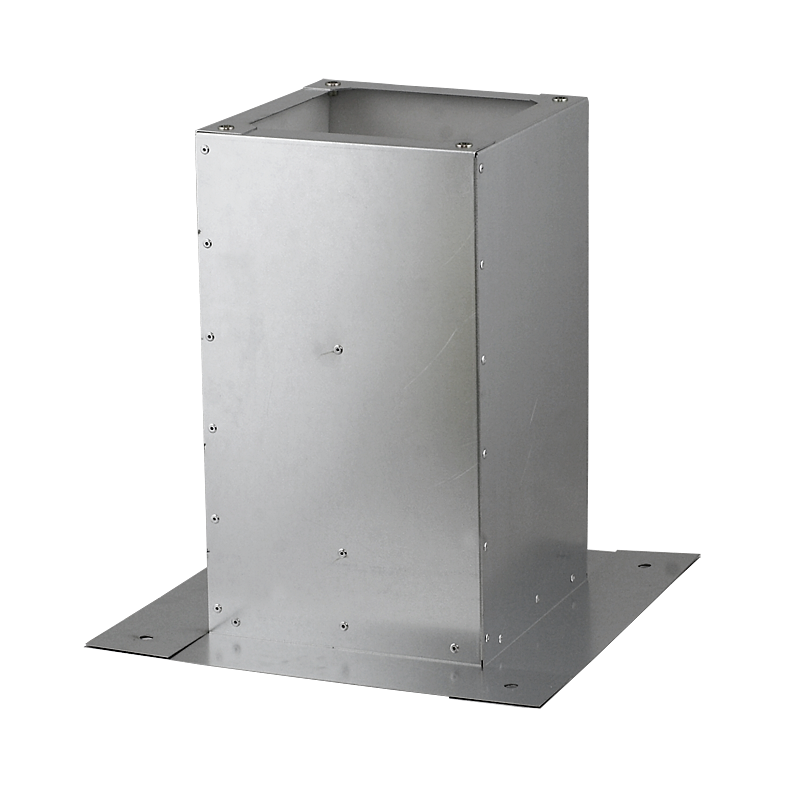

RSA, RSA-I, RSA-xx, RSA-I-xx - Roof stand

RSA, RSA-I, RSA-xx, RSA-I-xx

Roof stand

For use when mounting a fan onto a flat roof without upstands.
Contact us

Application

RSA, RSA-I: for installation on a horizontal flat roofing

RSA-XX, RSA-I-XX: for mounting on a flat sloping roof, where XX is the roof pitch

RSA, RSA-XX: the inside of the base is lined with a 10mm layer of

RSA polyurethane foam- I, RSA-I-XX: internal thermal insulation (glass / stone wool), 30mm thick.

Equipped with sound absorbing baffles.

Technical assistance

Choose a fan www.fanselectoronline.com

m3/h
Pa

Dimensions

Type A B C G H Npd
  mm mm mm mm mm mm
RSA 300 470 290 245 380 500 1
RSA 435 4600 419 330 510 500 2
RSA 560 725 545 450 635 750 3
RSA 630 795 615 535 705 750 3
RSA 710 875 695 590 705 1000 3
RSA 905 1065 885 750 975 1000 3
RSA 1100 1260 1080 840 975 1000 3
RSA 1250 1410 1230 950 1320 1000 3
Type A B C G H Npd
  mm mm mm mm mm mm
RSA-I 300 470 290 245 380 500 1
RSA-I 435 600 419 330 510 500 2
RSA-I 560 725 545 450 635 750 3
RSA-I 630 795 615 535 705 750 3
RSA-I 710 875 695 590 785 1000 3
RSA-I 905 1065 885 750 785 1000 3
RSA-I 1100 1260 1080 840 1170 1000 3
RSA-I 1250 1410 1230 950 1320 100 3
