ZPD

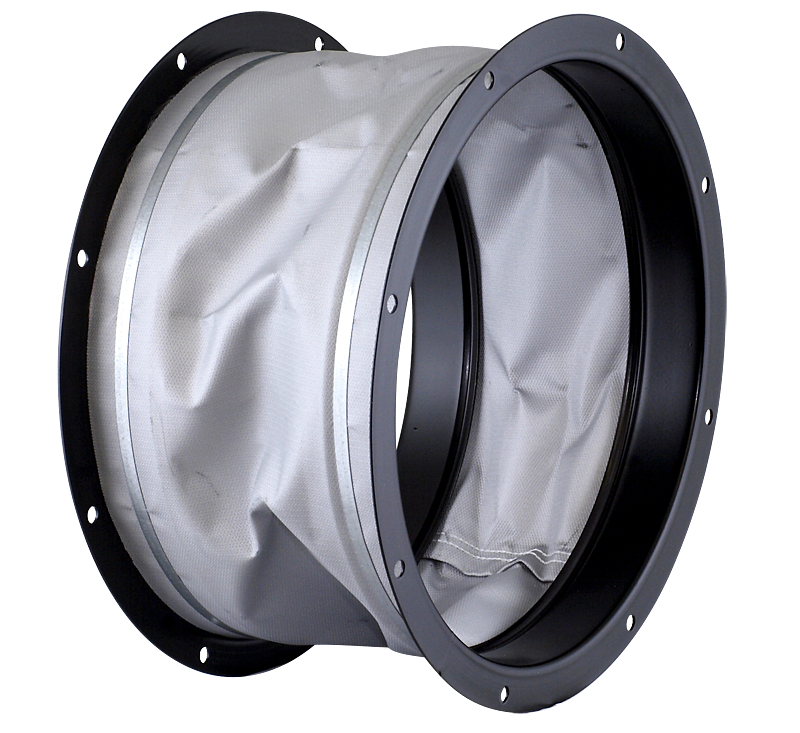

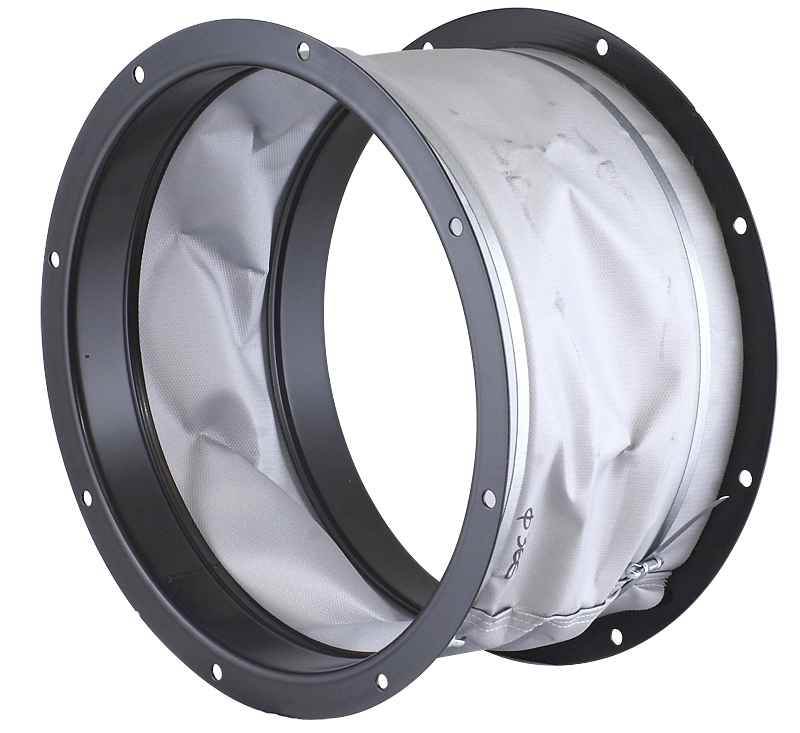

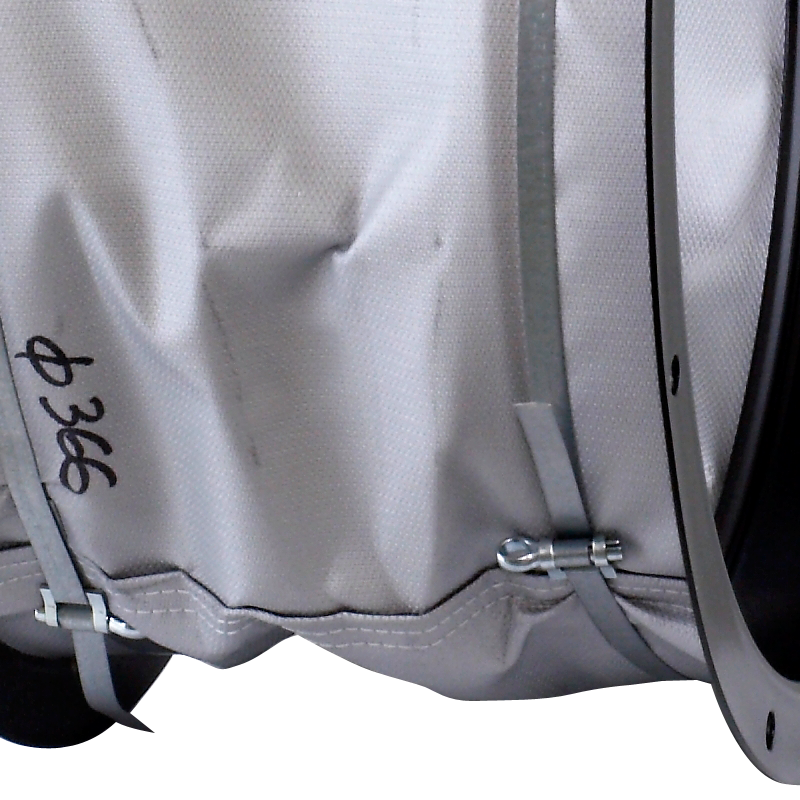

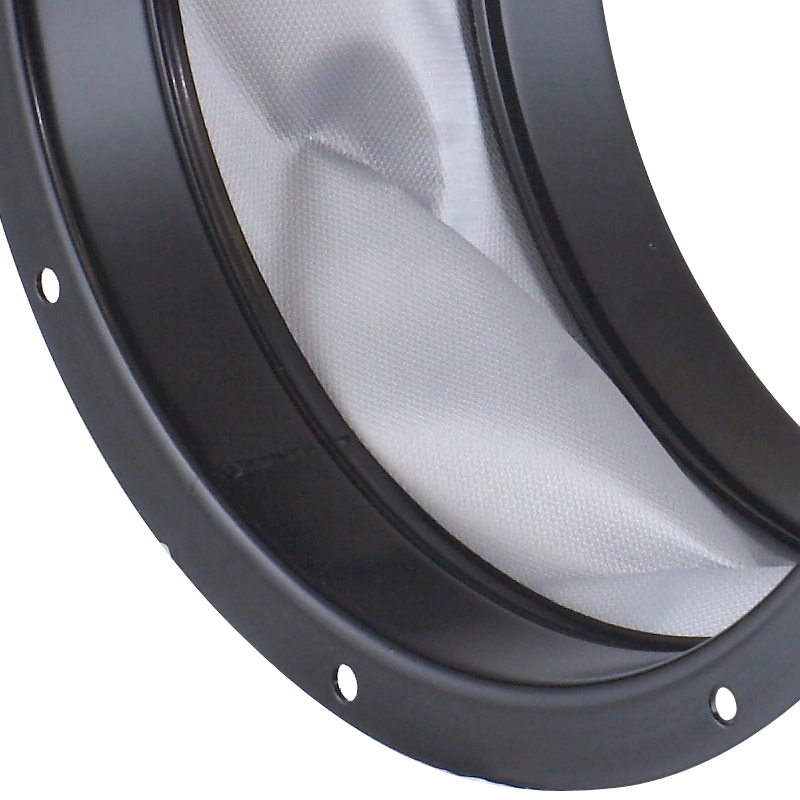

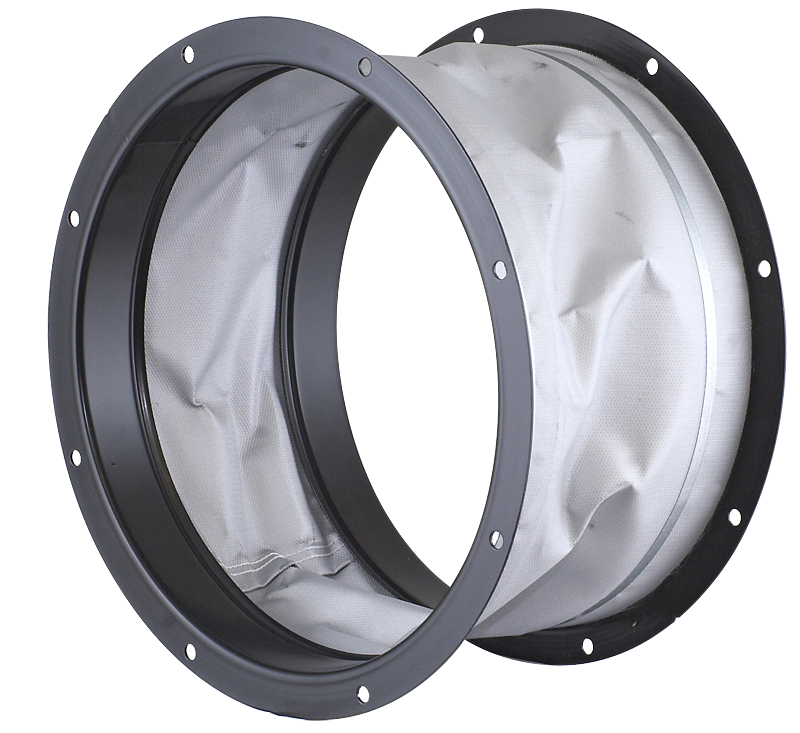

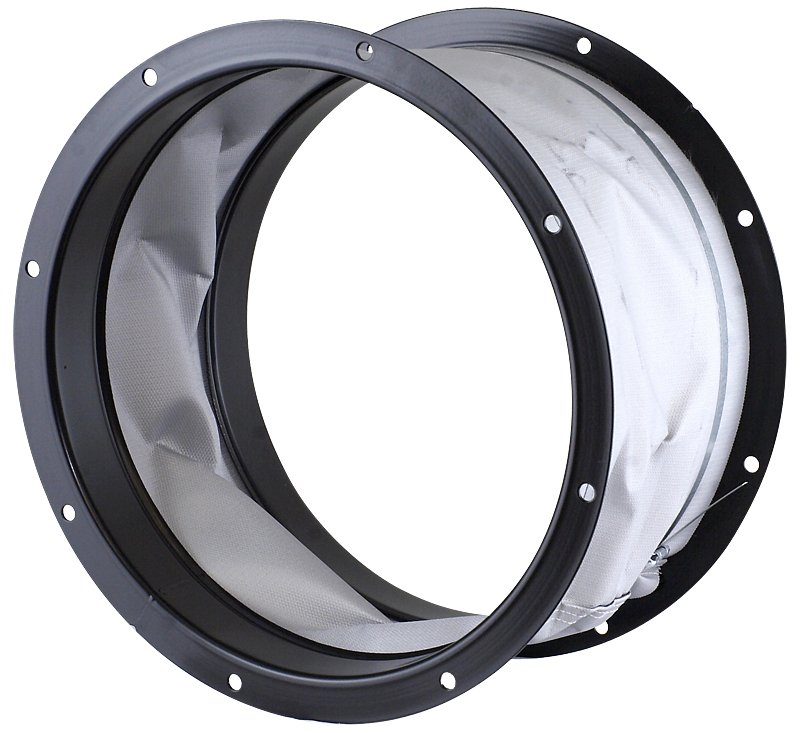

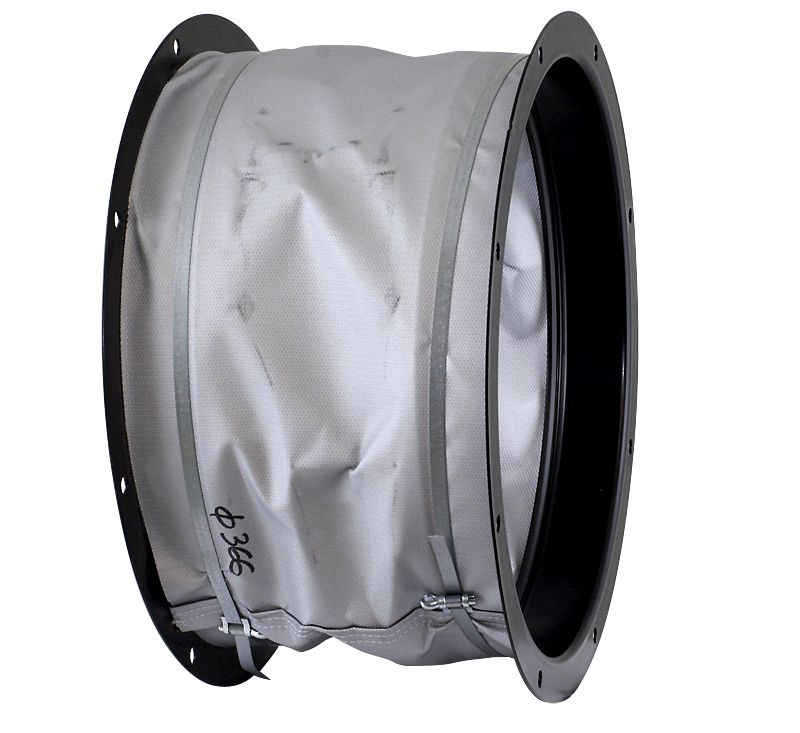

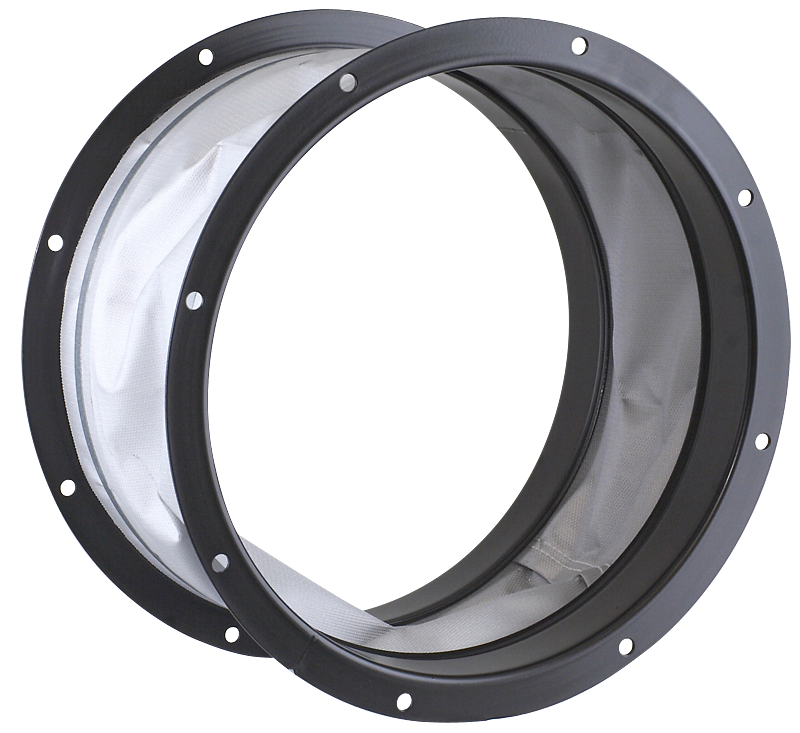

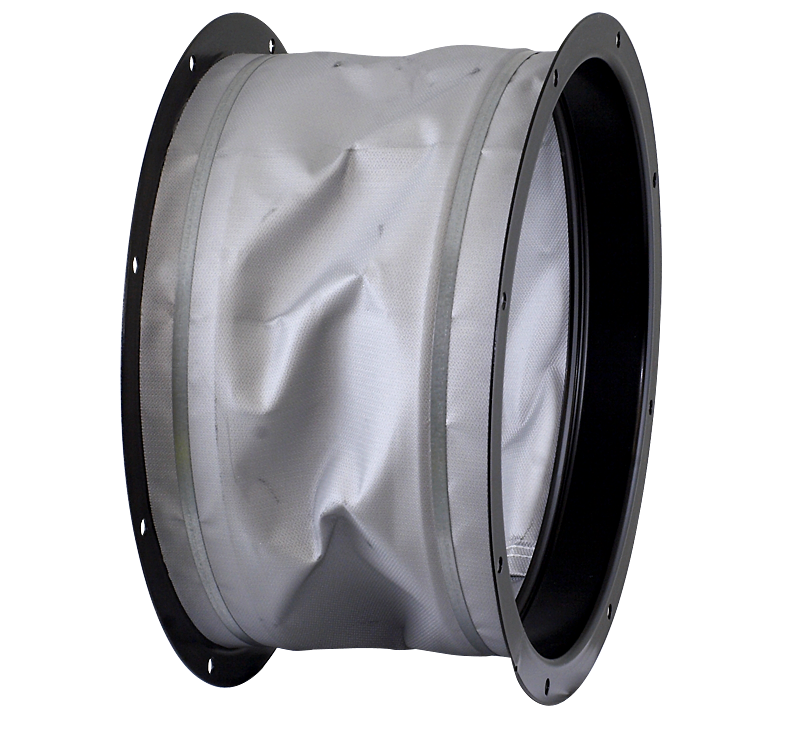

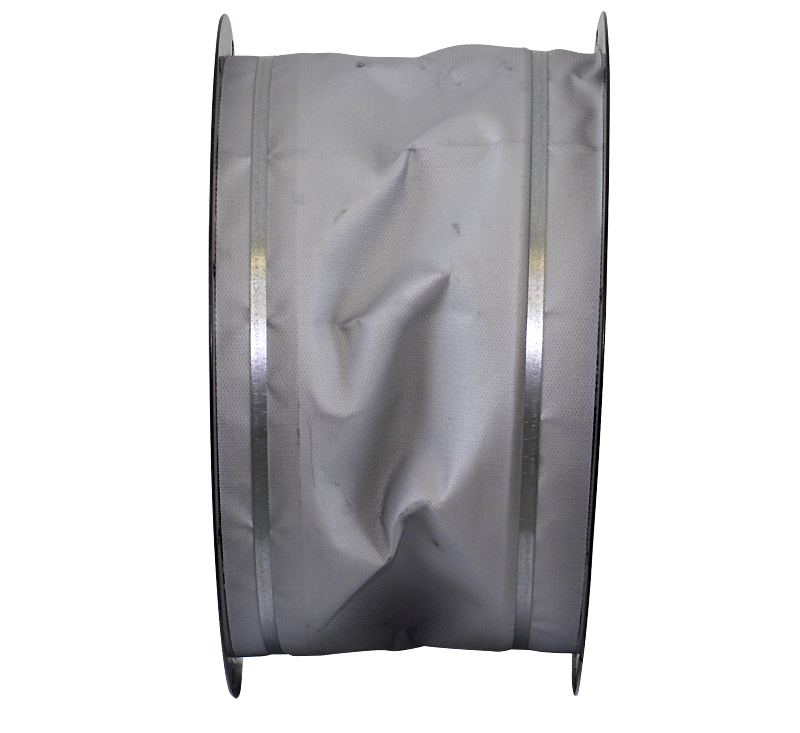

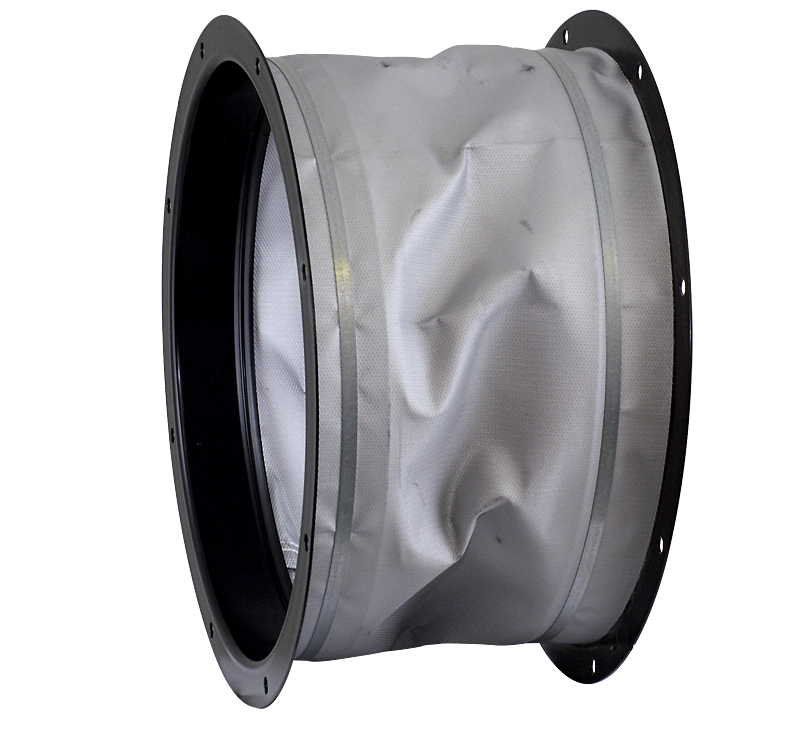

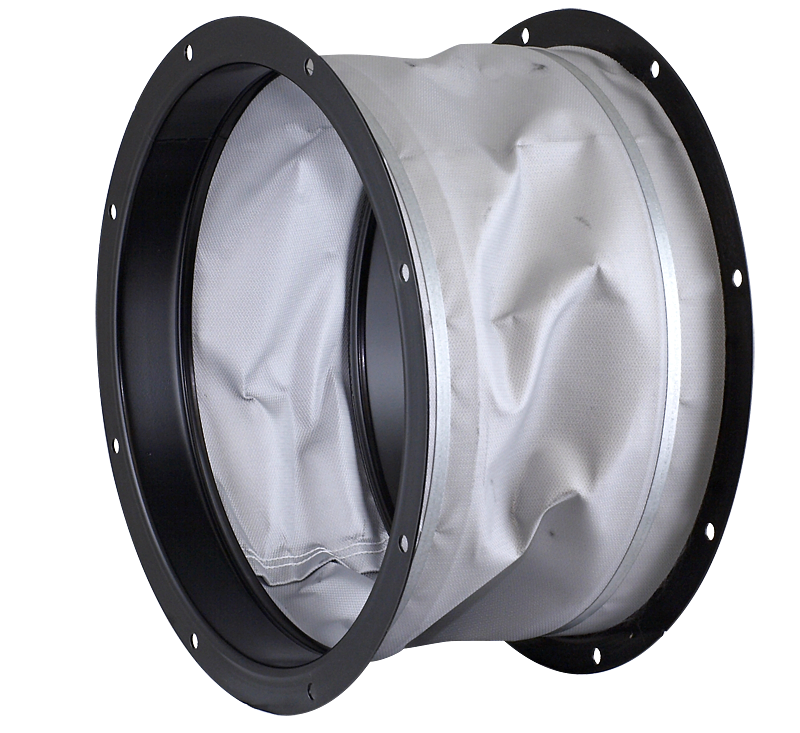

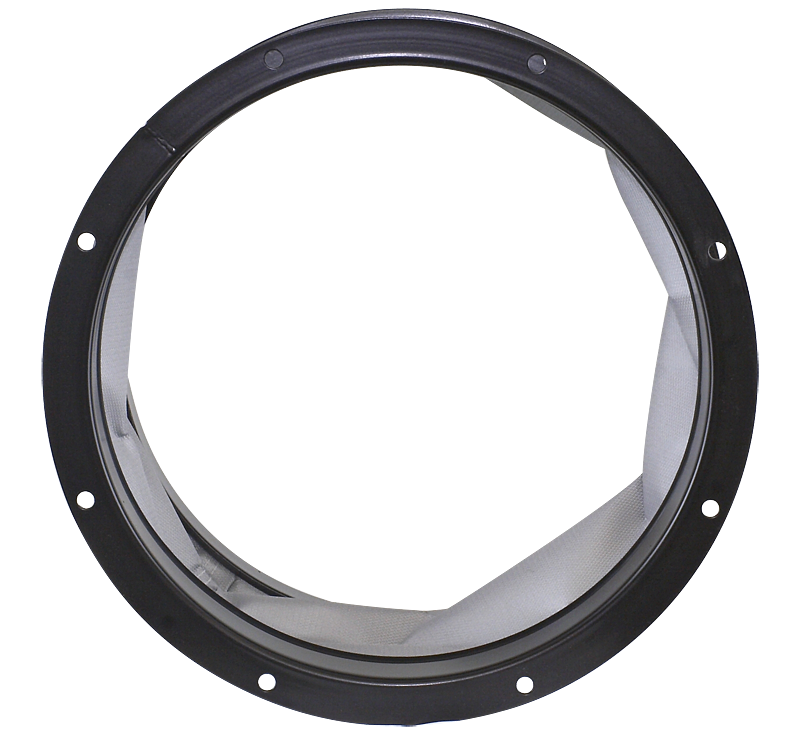

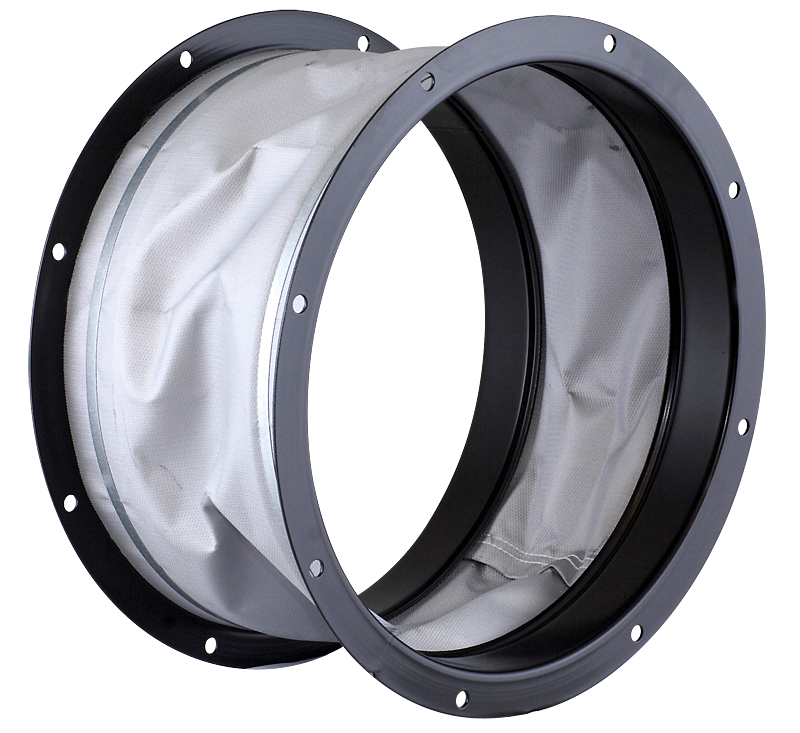

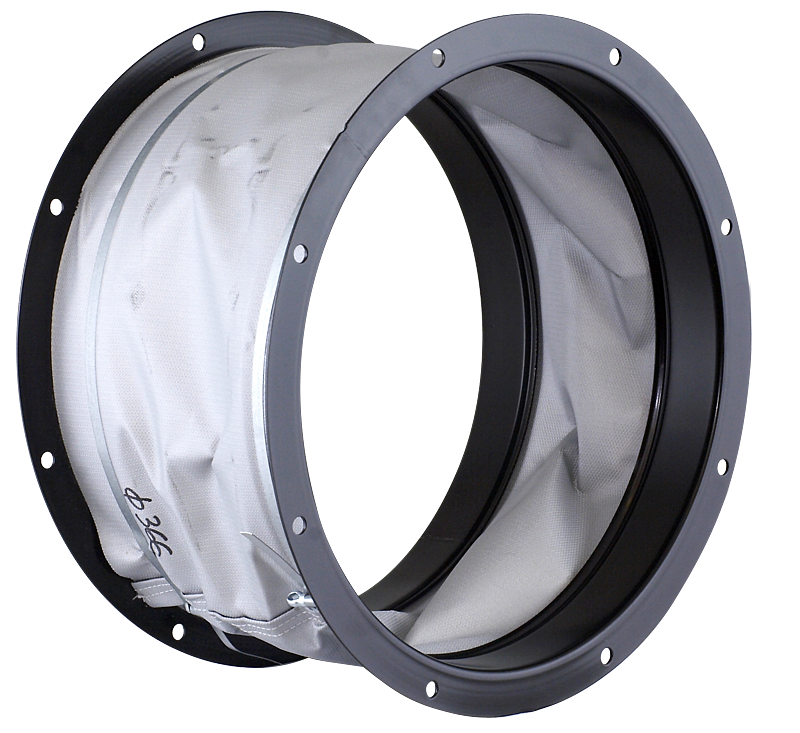

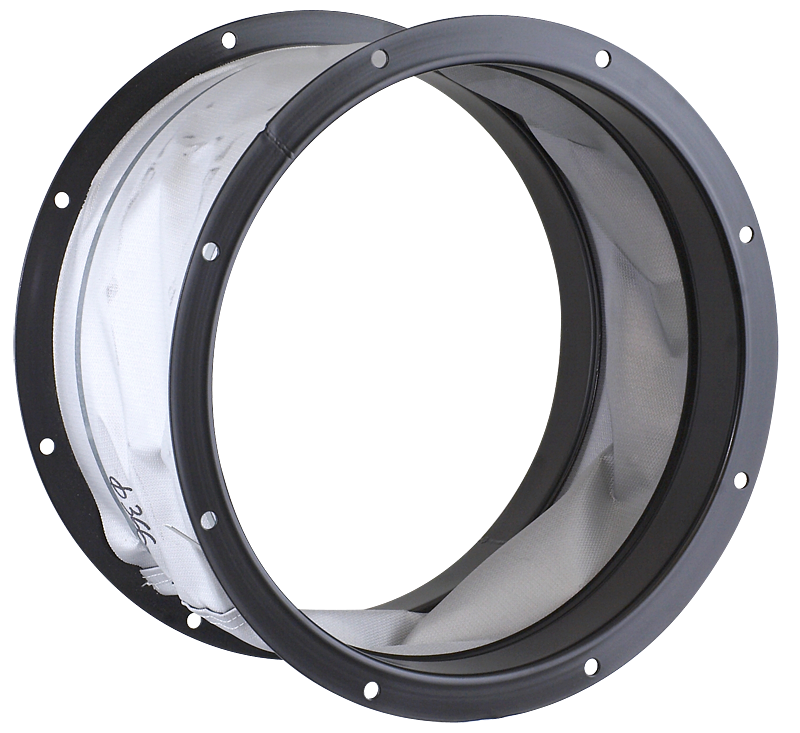

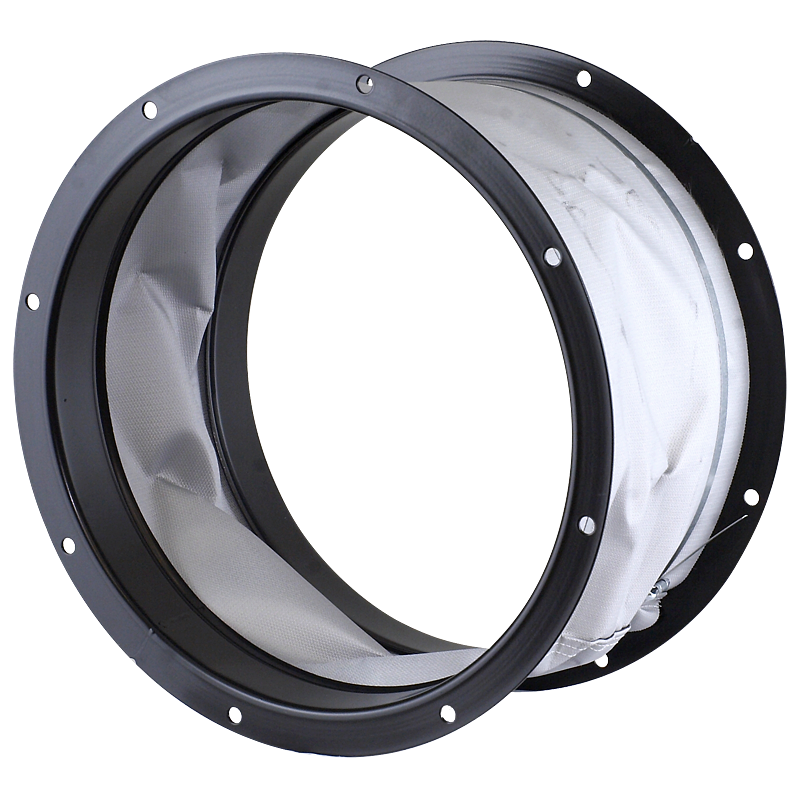

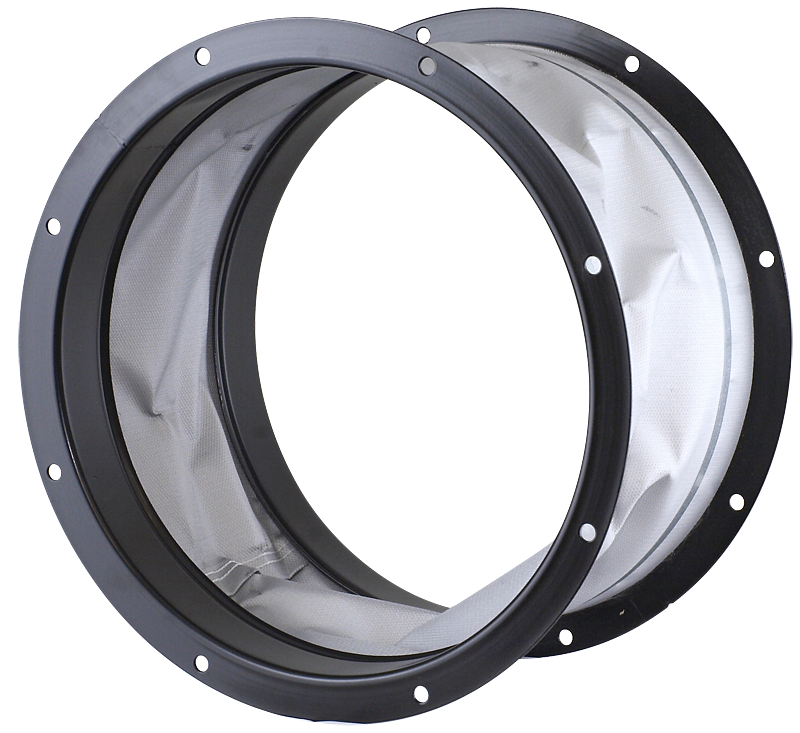

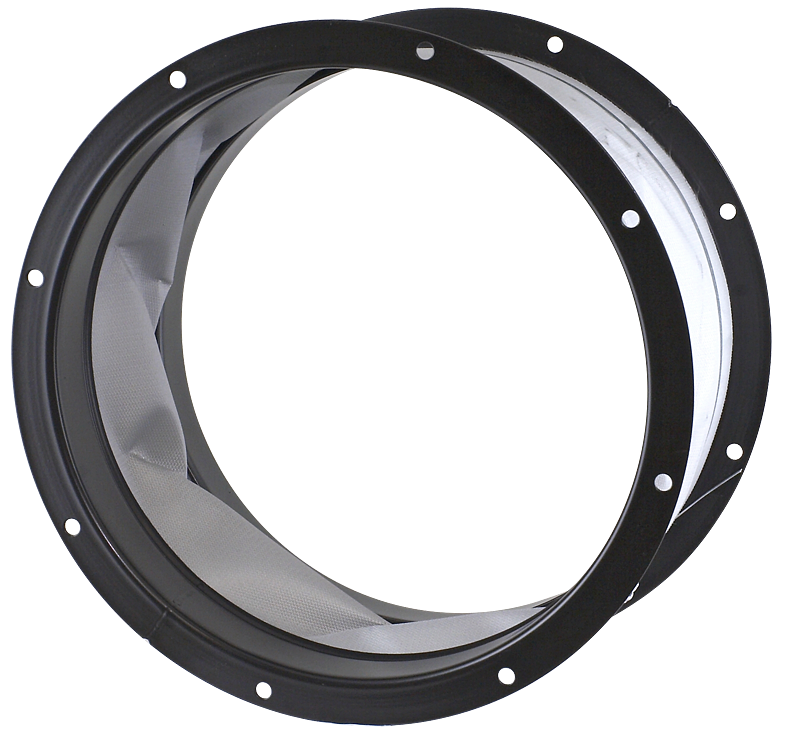

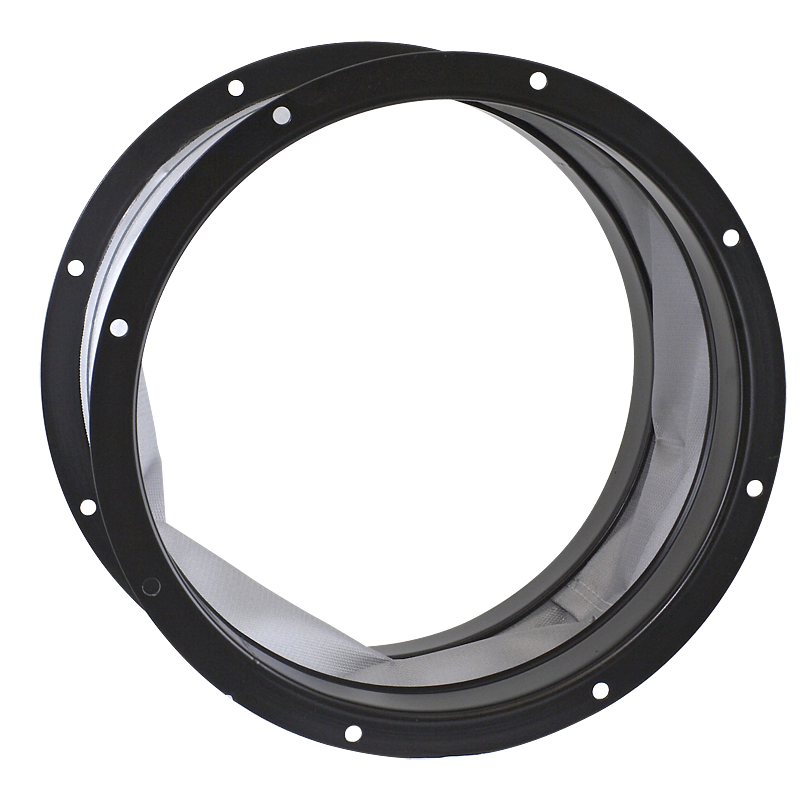

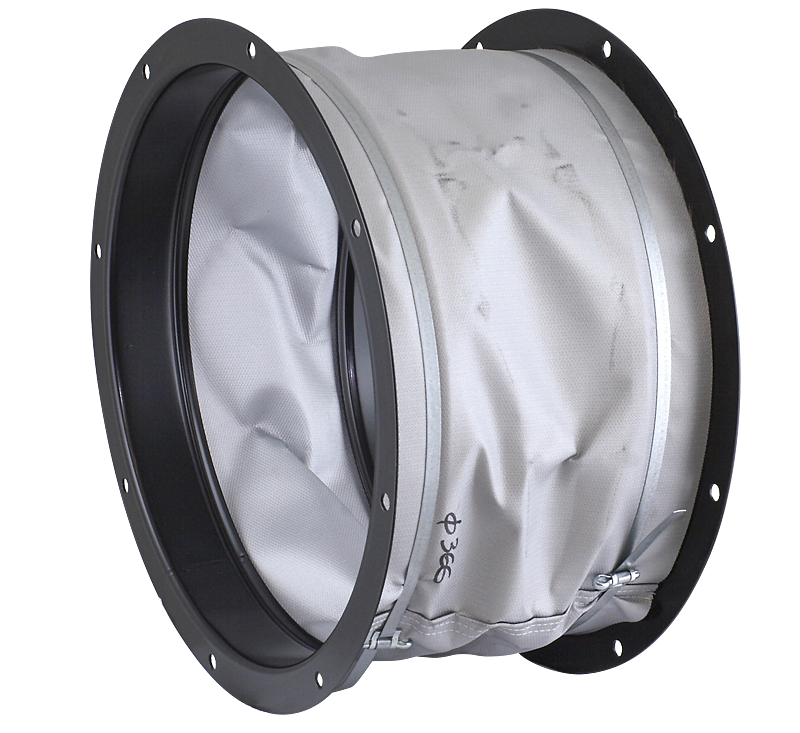

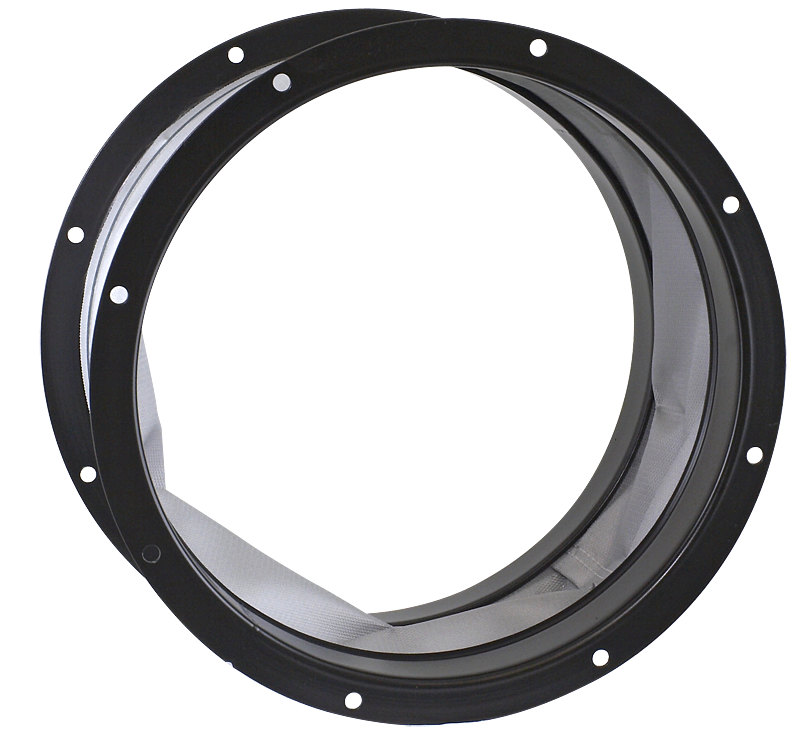

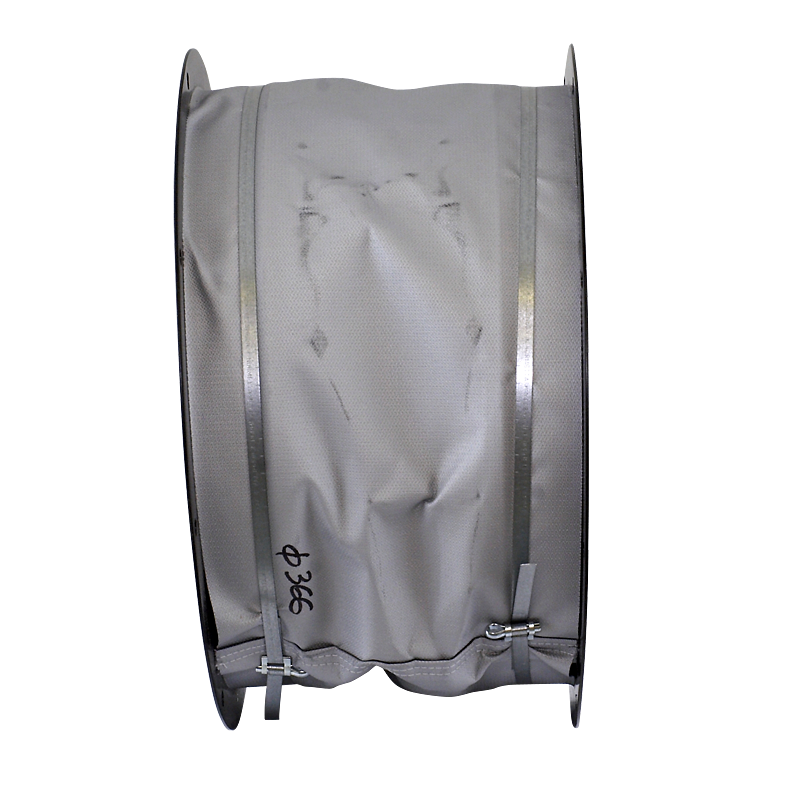

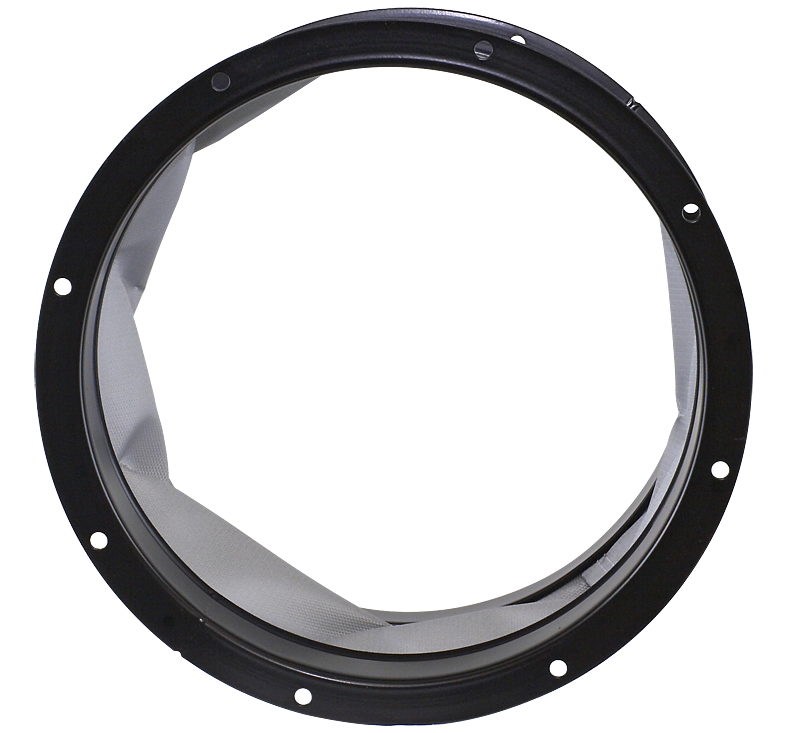

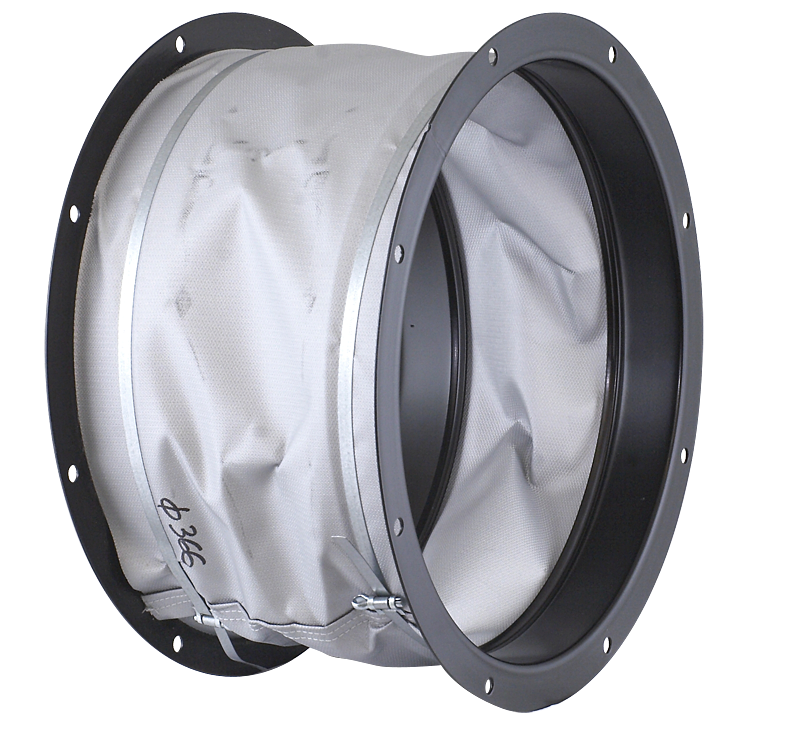

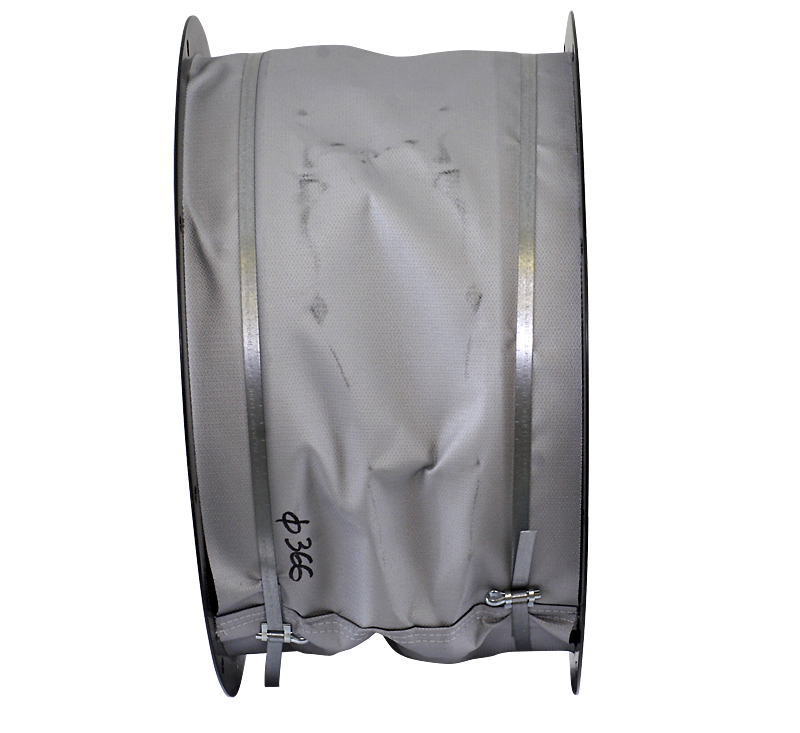

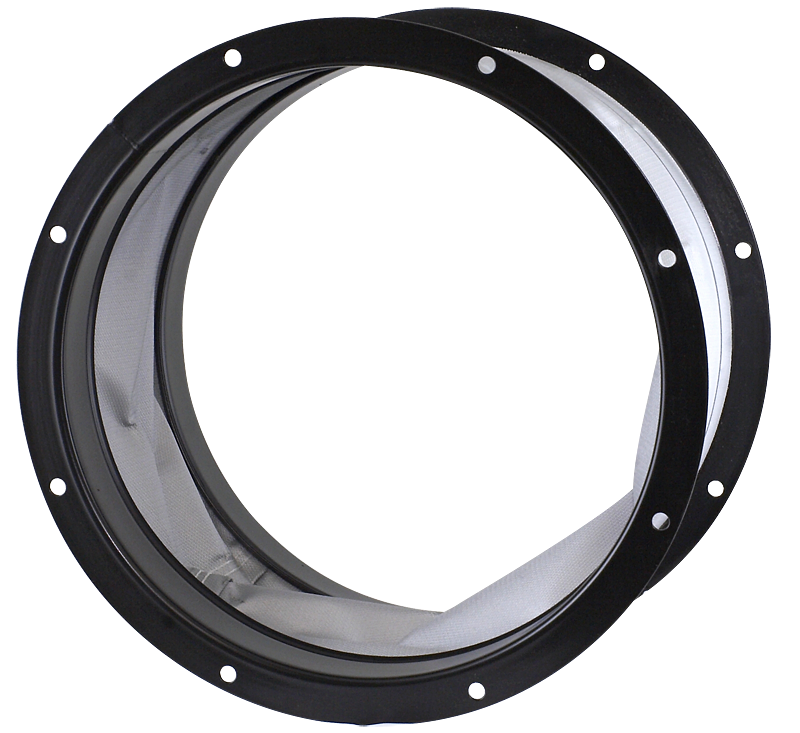

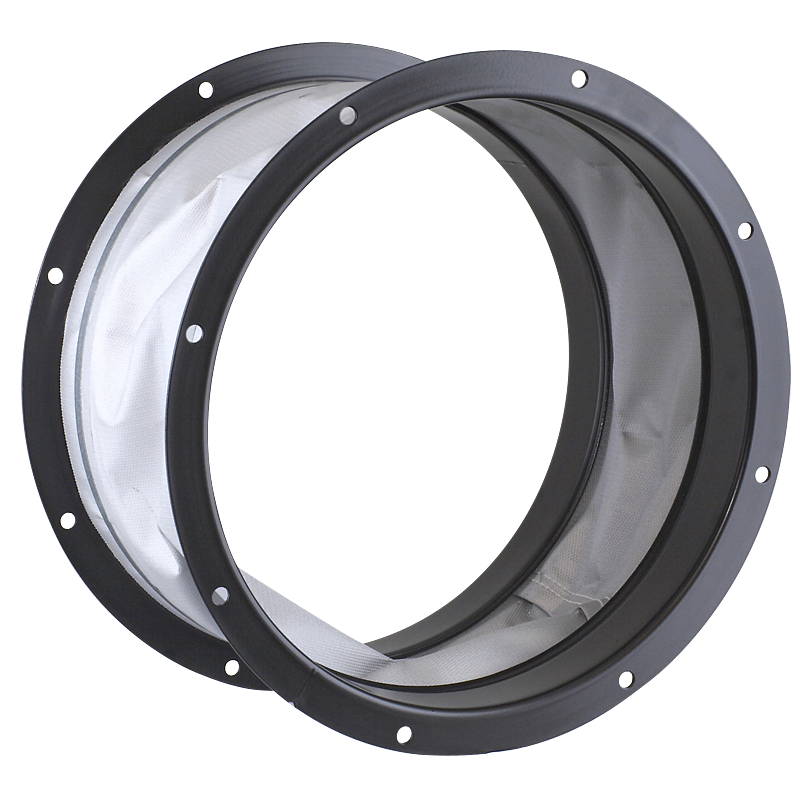

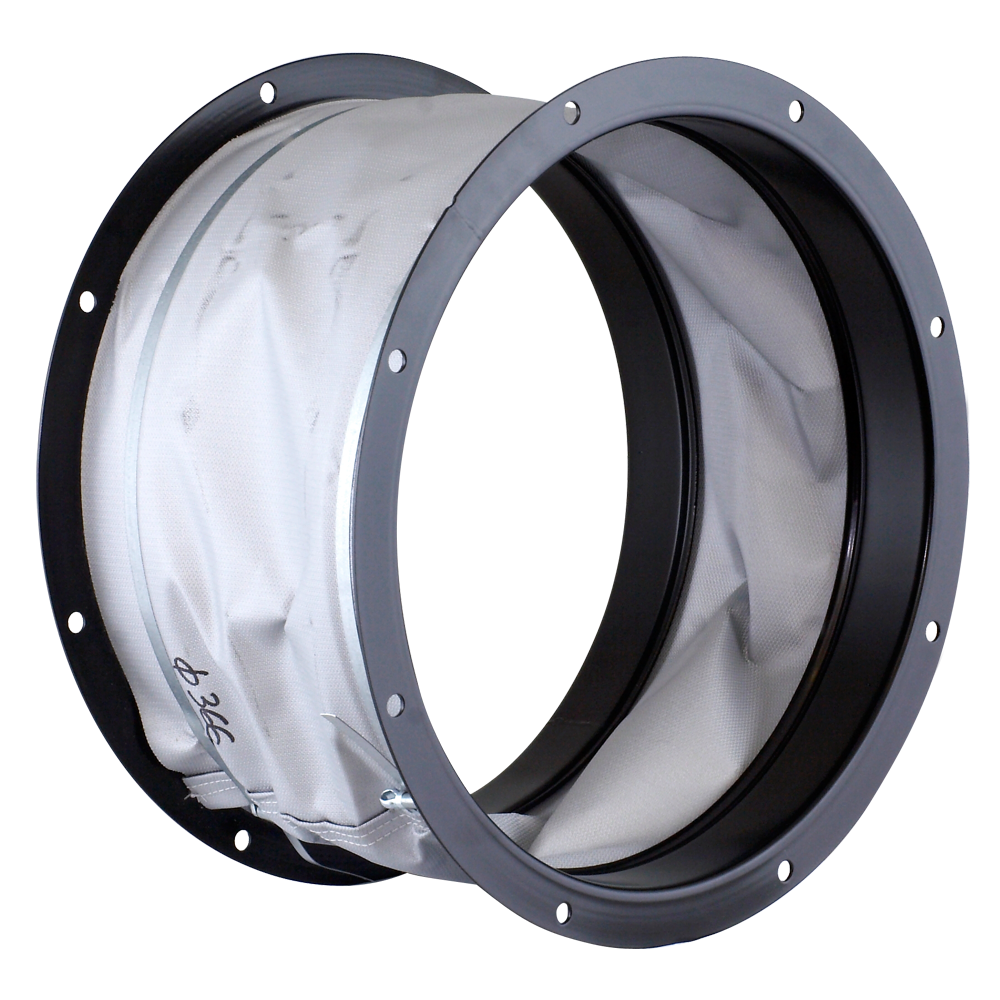

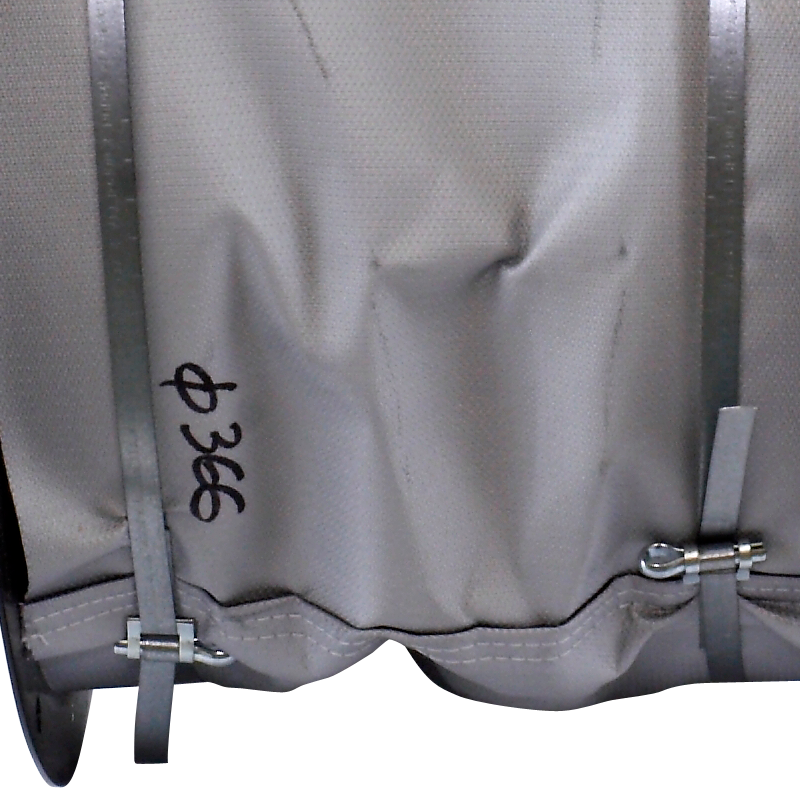

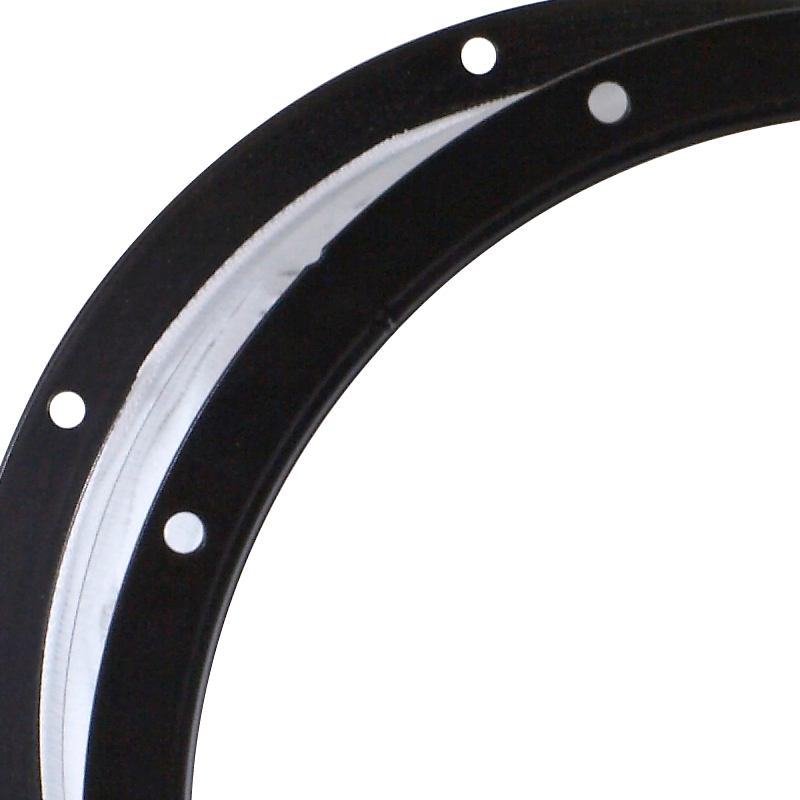

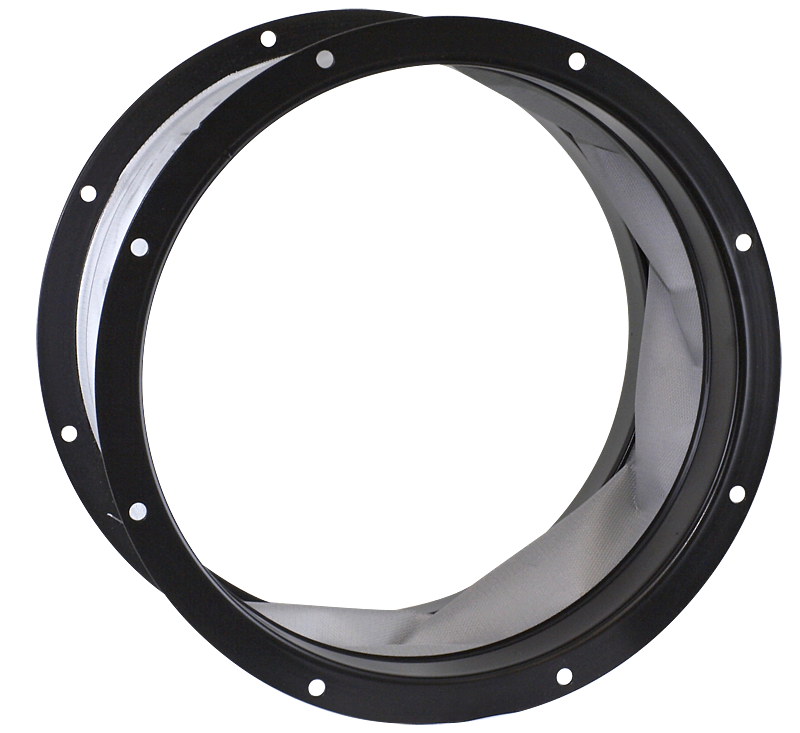

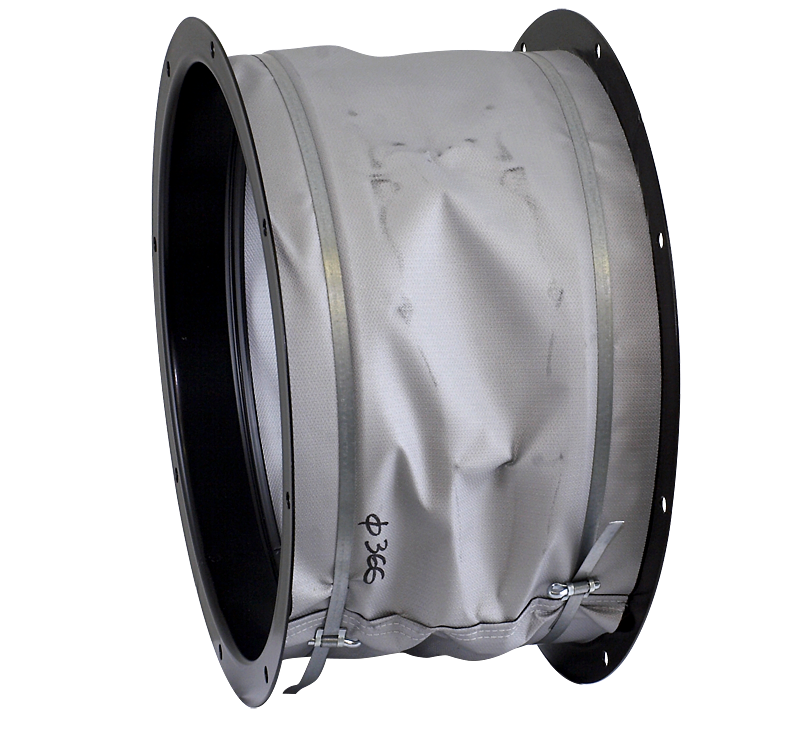

Flexible connector
Reduces the transmission of vibrations when the duct is connected directly to the fan. To be mounted at the fan inlet with JPA plate.
Application
- mounted when installing ventilation ducts
- mounting to the joint or directly to the fan base (screws or rivets)
Dimensions
| Type | E | ØD | ØH | ØJ |
|---|---|---|---|---|
| mm | mm | mm | mm | |
| ZPD 300 | 254 | 182 | 205 | 219 |
| ZPD 435 | 254 | 252 | 280 | 300 |
| ZPD 560 | 254 | 358 | 395 | 415 |
| ZPD 630 | 254 | 403 | 450 | 474 |
| ZPD 710 | 254 | 503 | 560 | 581 |
| ZPD 905 | 254 | 633 | 690 | 714 |
| ZPD 1100 | 254 | 713 | 770 | 797 |
| ZPD 1250 | 254 | 713 | 770 | 797 |
