Filtration set HUF 620 is a high-quality air cleaner which supplies fresh are that is free of dust.
Contact us

Application

The HUF 620 filter set is a high-quality air purifier, it provides fresh air that is cleaned of dust or dust.

It is intended for rooms where finishing works are carried out, e.g. plastering or sanding.

Construction

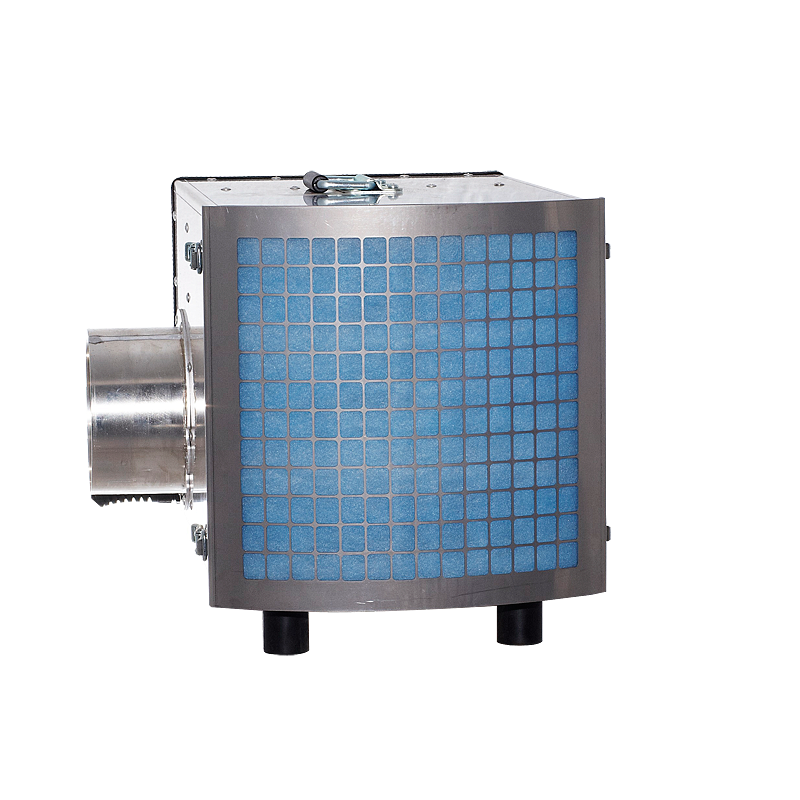

Housing made of stainless steel. It has a folding handle as well as vibration isolating feet which allow it to be placed one on top of the other.

The set is equipped with two filters: preliminary G3 and main H13 HEPA. The insert should be replaced when the flow resistance exceeds 400 Pa. It is indicated by an orange lamp on the housing. Thanks to the built-in pressure switch, it is possible to control the degree of filter contamination.

The set is equipped with a work time counter.

Motor

Electric motor made in accordance with the applicable Directives and efficiency classes, marked with the CE mark. Two-speed motor, equipped with thermal protection (TP - automatic). Insulation class - B. Protection class - IP44.
