LAUTUS - Air purifier

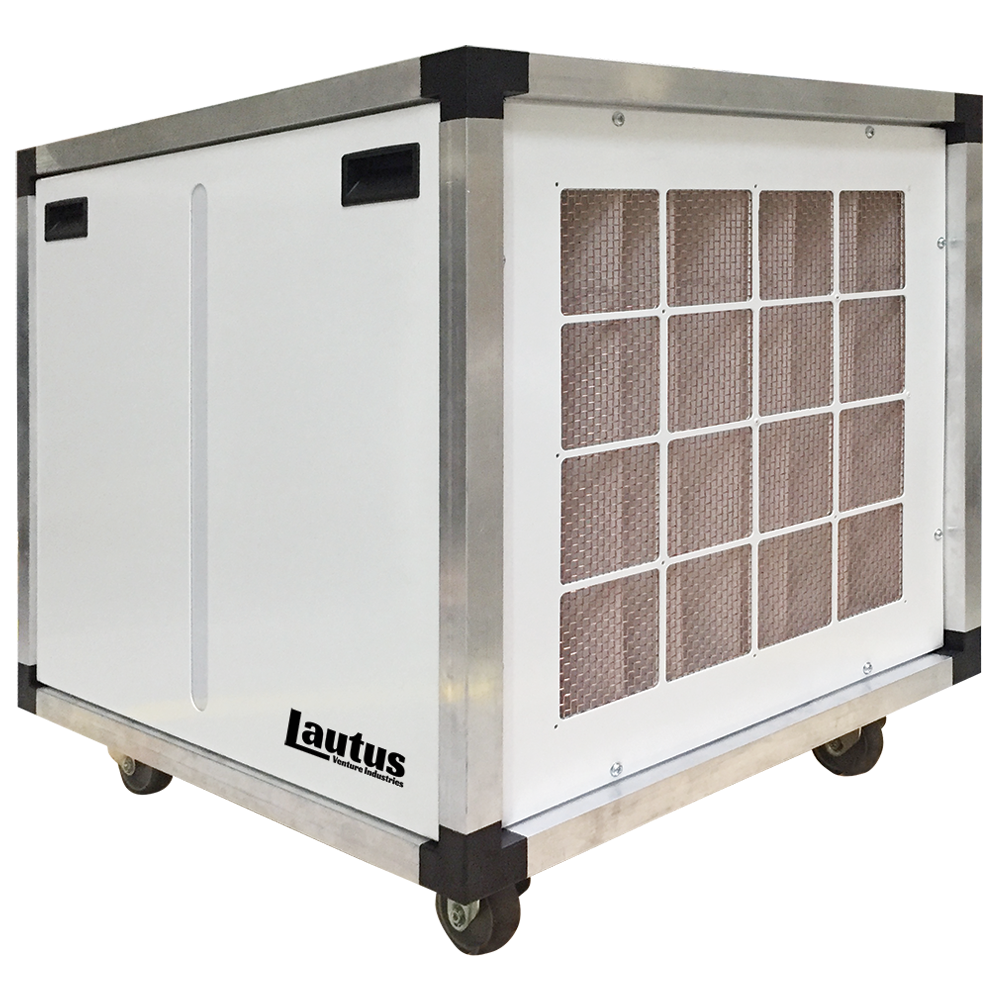

LAUTUS

Air purifier

Device is designed to clean air from particles of microorganisms, fungi, bacteria and viruses. Three-stage filtration including two HEPA filters and a UV-C lamp for effective air filtration and removal of virus particles. Contact info@ventur.se or +46 31 23 50 80 for more information or to receive a quotation.
Now available from
Ventur & Venture Industries
Contact us

APPLICATION

Device is designed to clean air from particles of microorganisms, fungi, bacteria and viruses larger than 0,1 µm in closed areas where people reside, as like:

  • reception desks, shops, pharmacies, offices, libraries, restaurants, as well as in industrial spaces such as mechanical workshops.

CONSTRUCTION

On objects made of copper, the persistence of bacterias and viruses is significantly shorter. Due to this at the inlet of the device and in the sealed chamber between the H13 and H14 filters, copper grids were used to accelerate the decomposition of microorganisms.
The device uses a 3-stage filtration level which consists of:

  • I - pre-filter in the G4* class, located right behind the inlet, whose task is to catch dust particles and dirt from the air,
    II - filter classified H13*, located behind the pre-filter and in front of the UV-C lamp, whose task is to filter the air from microorganisms, bacteria or fungi,
    III - H14 class* filter that is able to stop 99.995% of 0.1 µm particles such as viruses.

The sealed chamber consists of H13 and H14 filters and a UV-C lamp. Inside the chamber, the radiation of the UV-C lamp disintegrates the cells of microorganisms effectively fighting them inside the device. The side panels use LEDs informing the user about the operation of the UV-C lamp. The lamp works in intervals of one hour irradiation to the chamber, next the lamp is turned off for the next hour. The device meets the requirements of the PN-EN 62471 standard regarding the photobiological safety of lamps.
The intelligent control system allows for 4-stage airflow regulation.
The device is equipped with signaling pre-filter contamination,   unsealing of the H14 filter and failure of the UV-C lamp. The whole is a modern structure made of painted aluminum sheet mounted on wheels ensuring easy transport.

* The filtration efficiency of the filters used in the device is defined by the standards PN-EN 779, PN-EN 1822-1, PN-EN 1822-4.

ELECTRIC MOTOR EC

  • Highly efficient motors with integrated EC technology ensure reduced demand for electricity (lower CO2 emission), minimize operating costs.

Product video

We invite you to watch the video showing the construction and advantages of an air purifier

Technical assistance

Choose a fan www.fanselectoronline.com

m3/h
Pa

Dimensions

Type A B H
  mm mm mm
LAUTUS 50 600 730 700
LAUTUS 100 750 730 850
