KWK
Grill

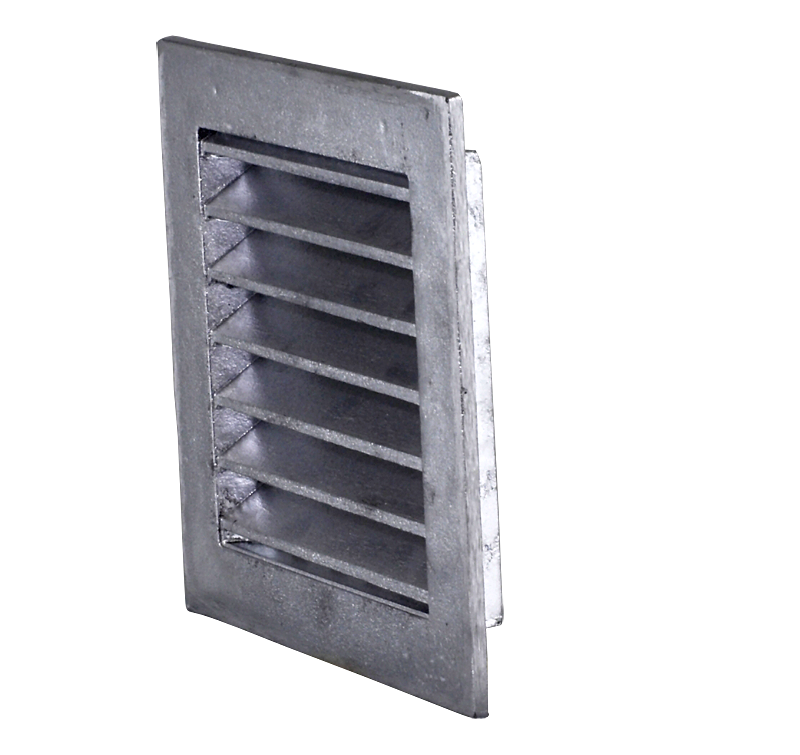

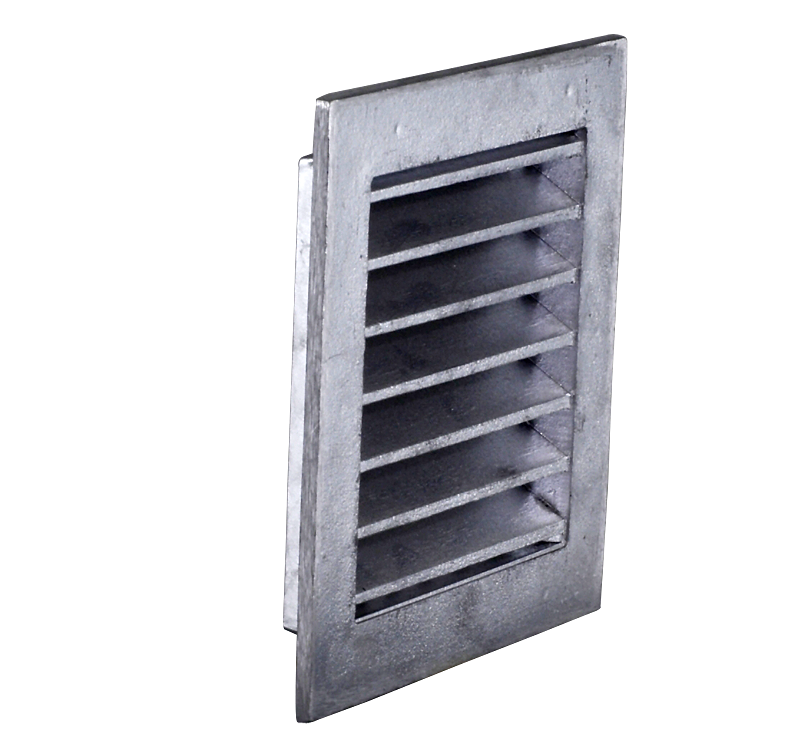

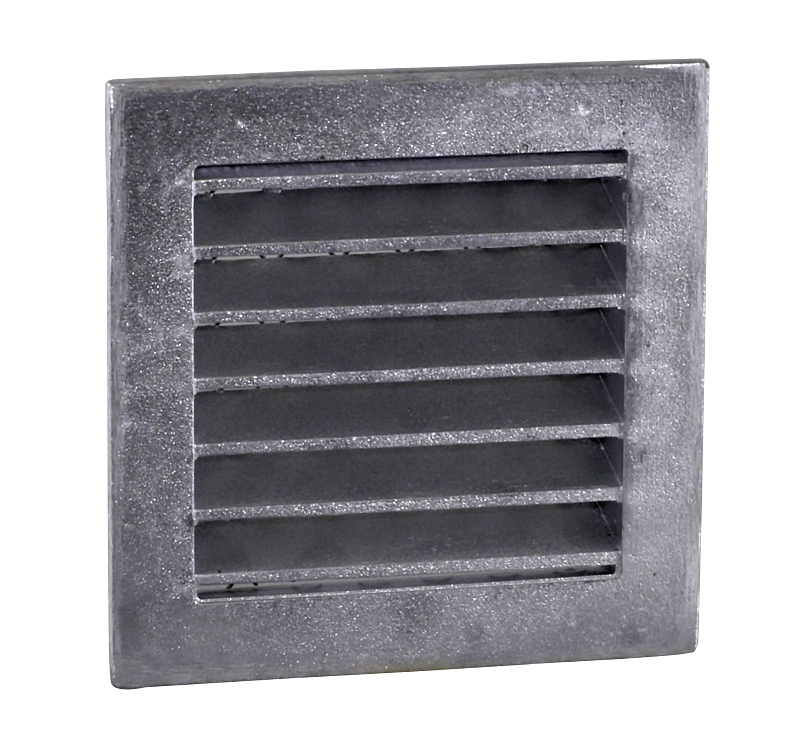

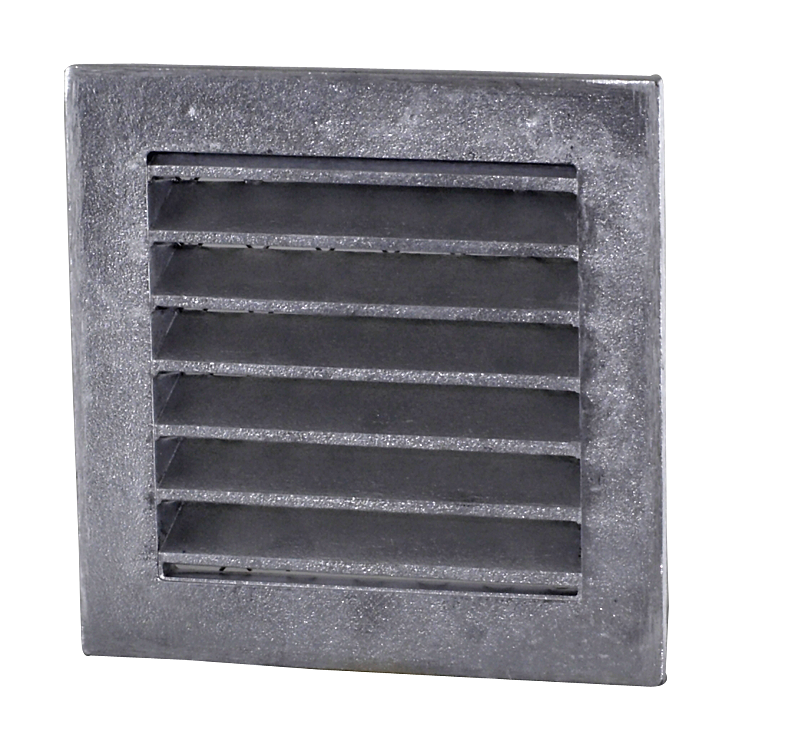

A square air grate that is suitable for installation both inside and outside of a building.
Application

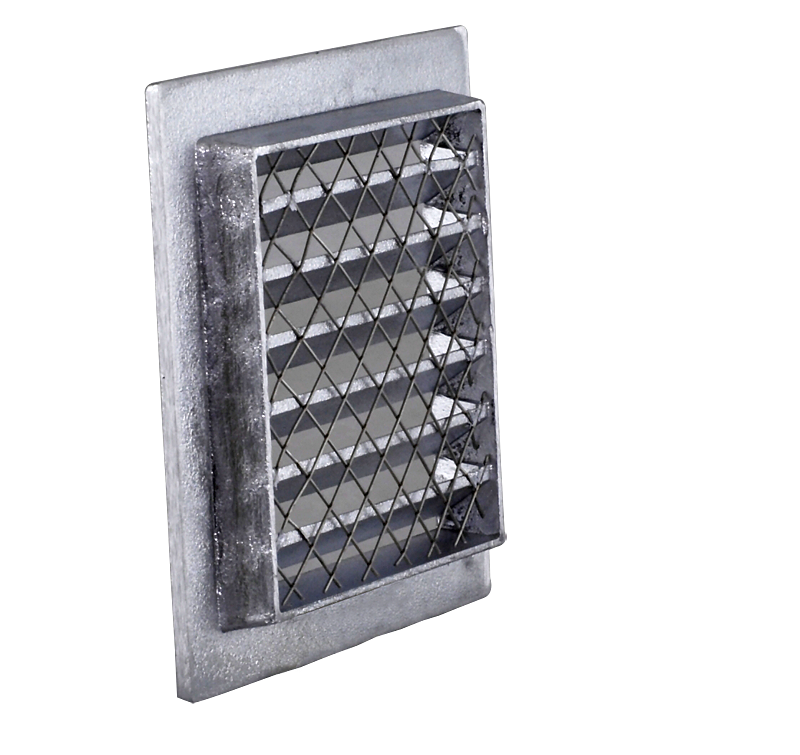

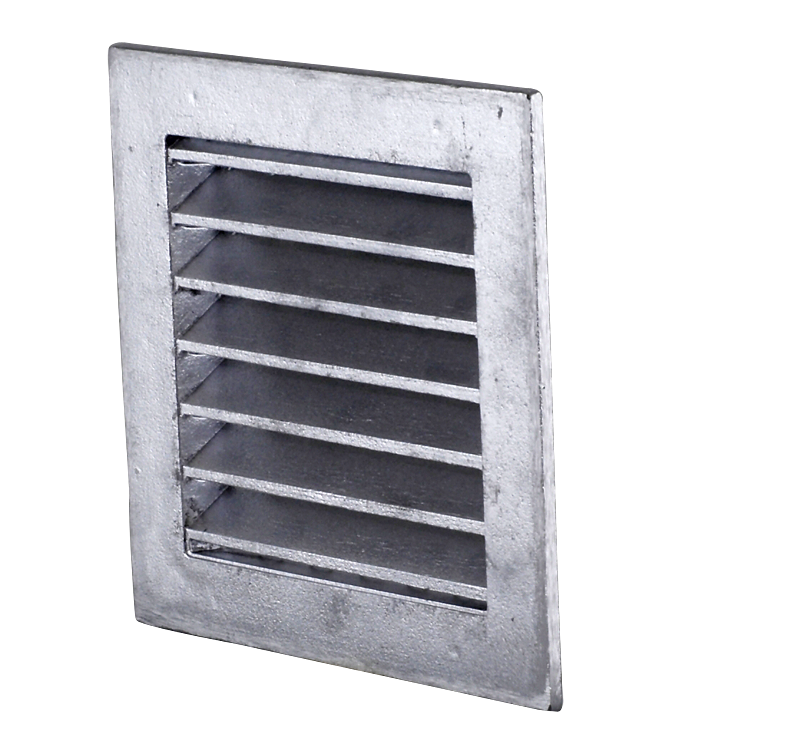

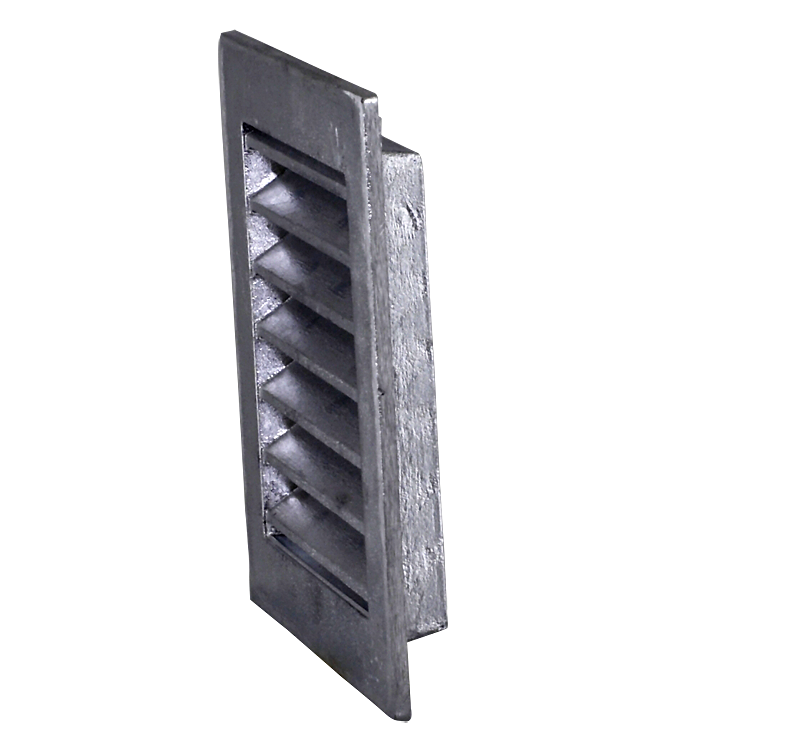

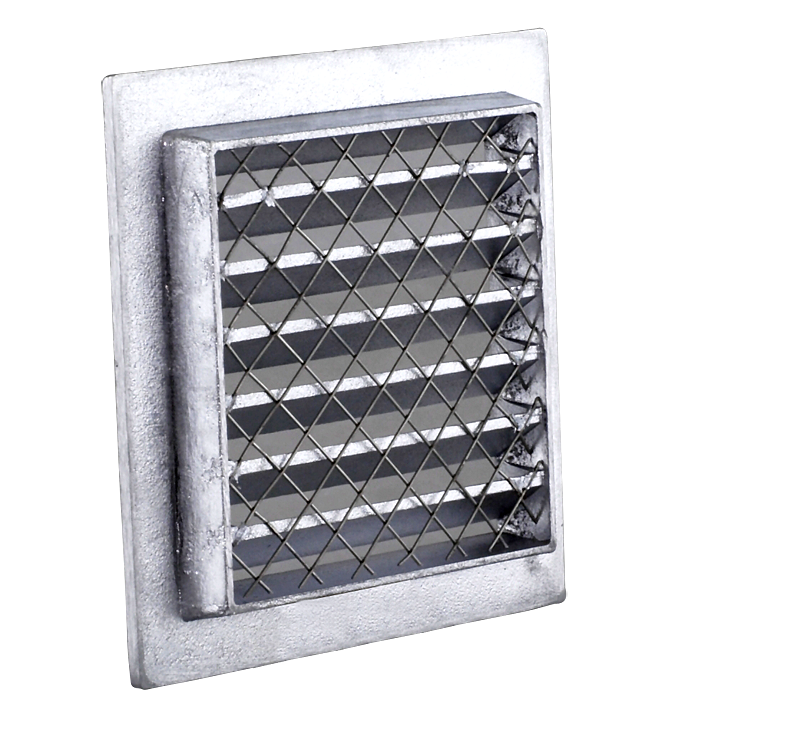

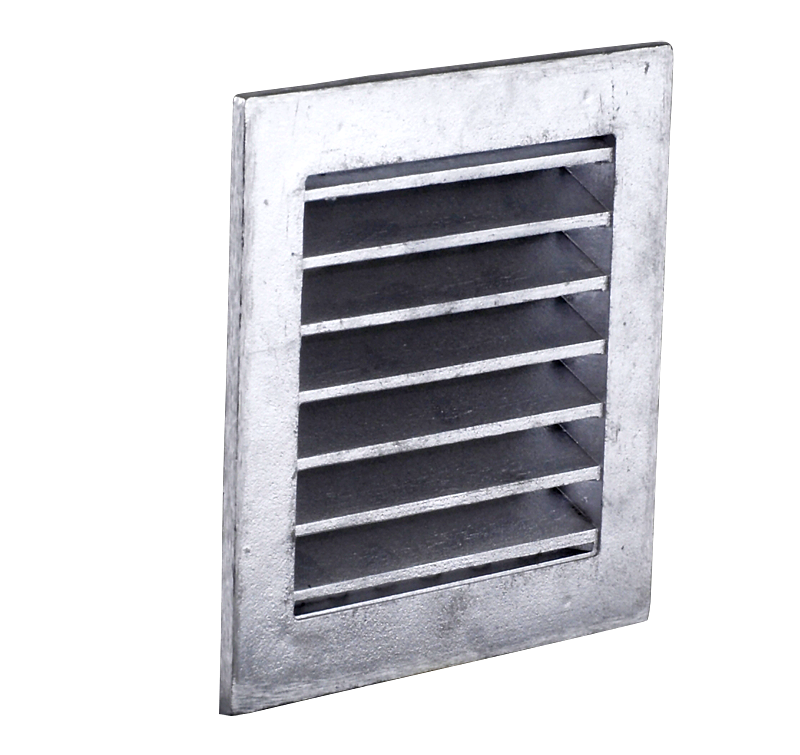

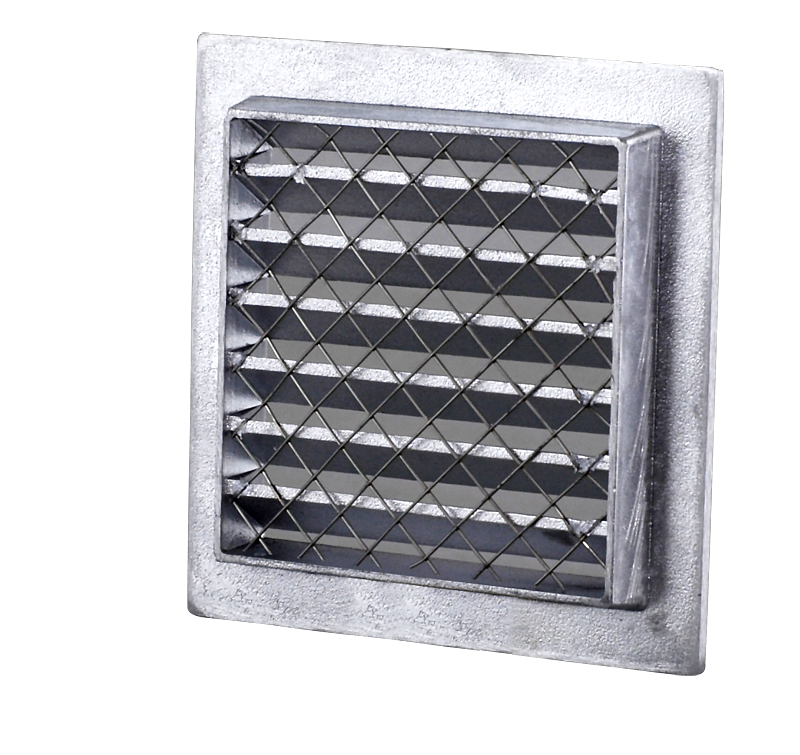

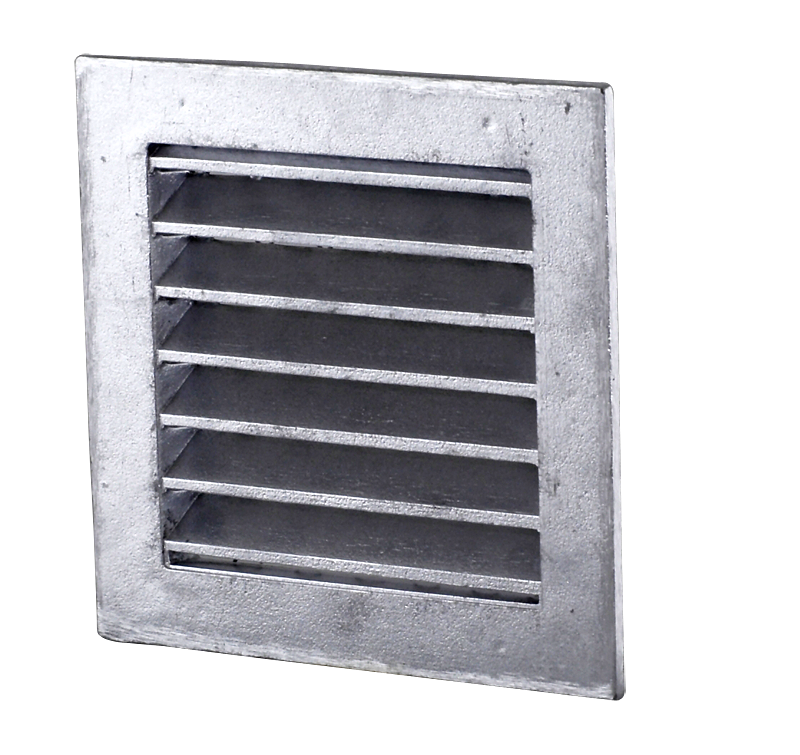

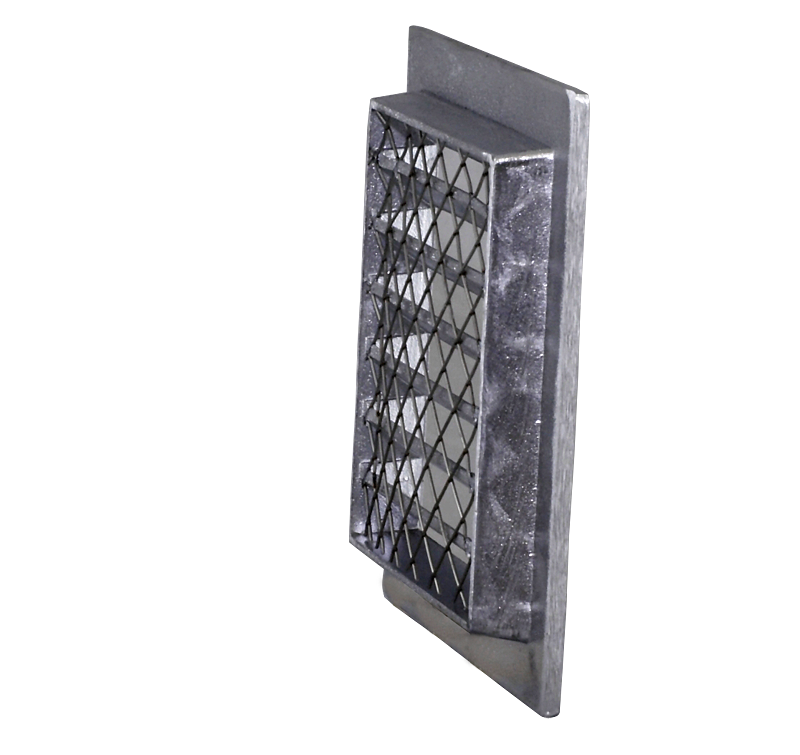

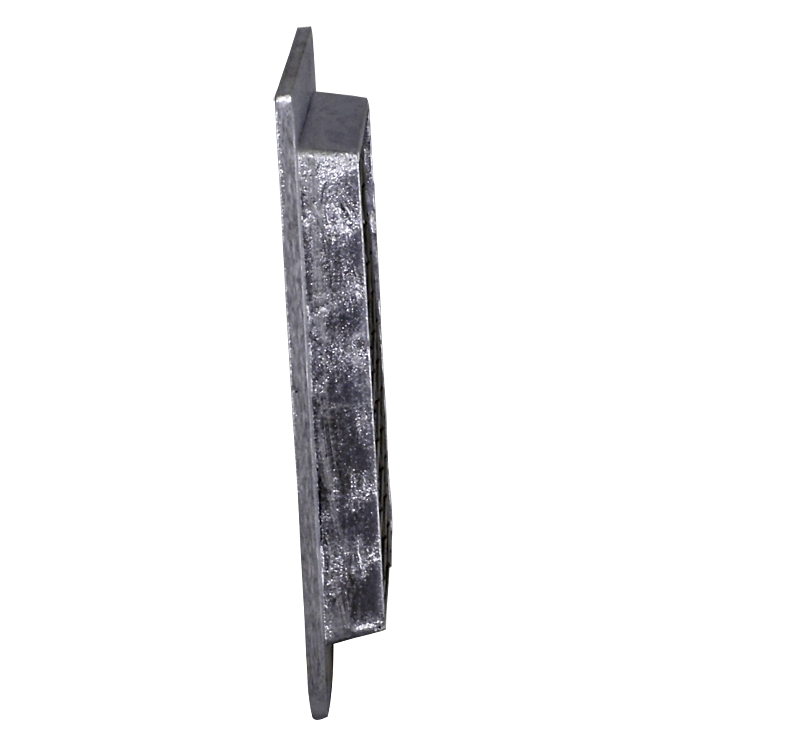

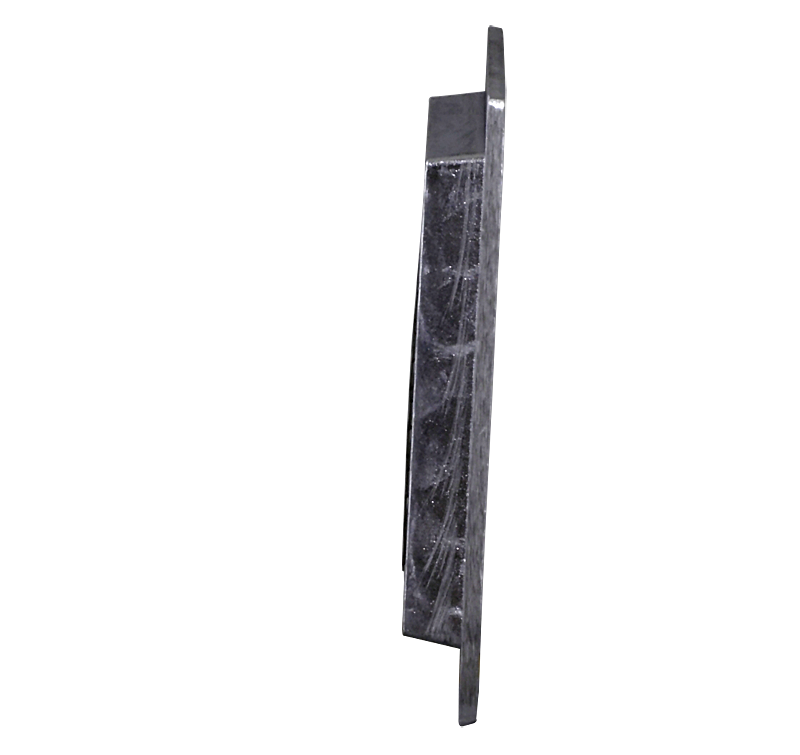

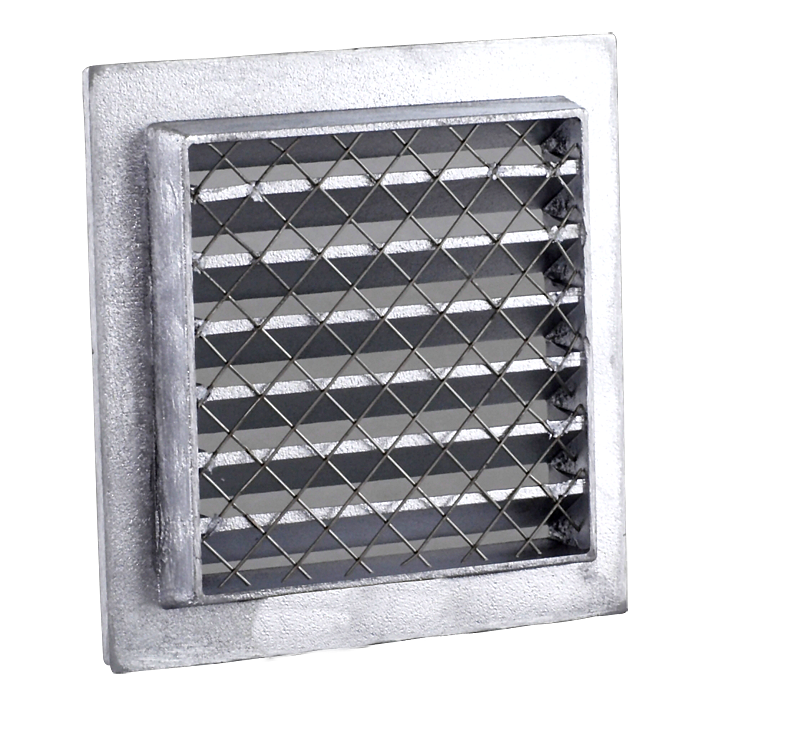

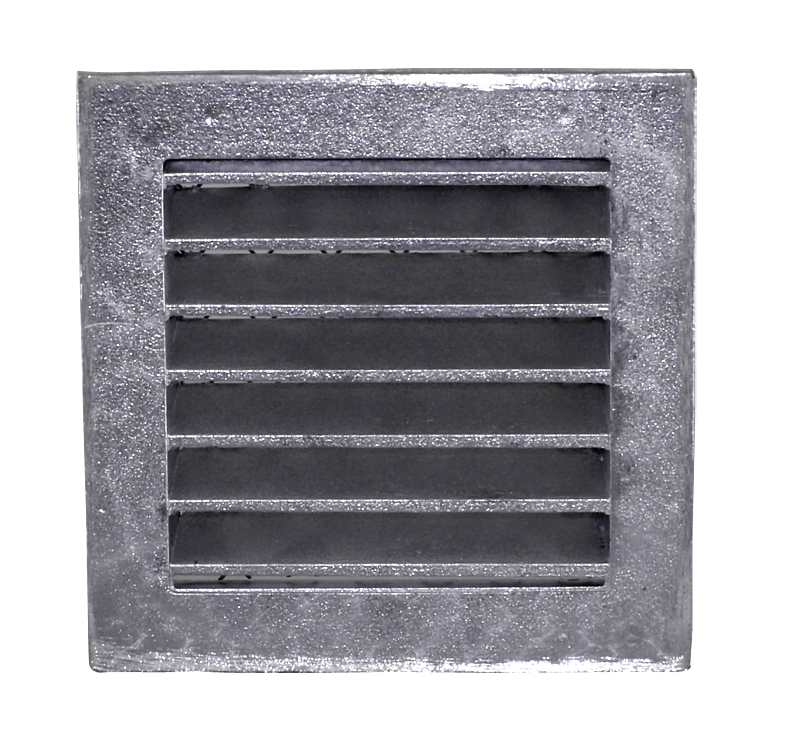

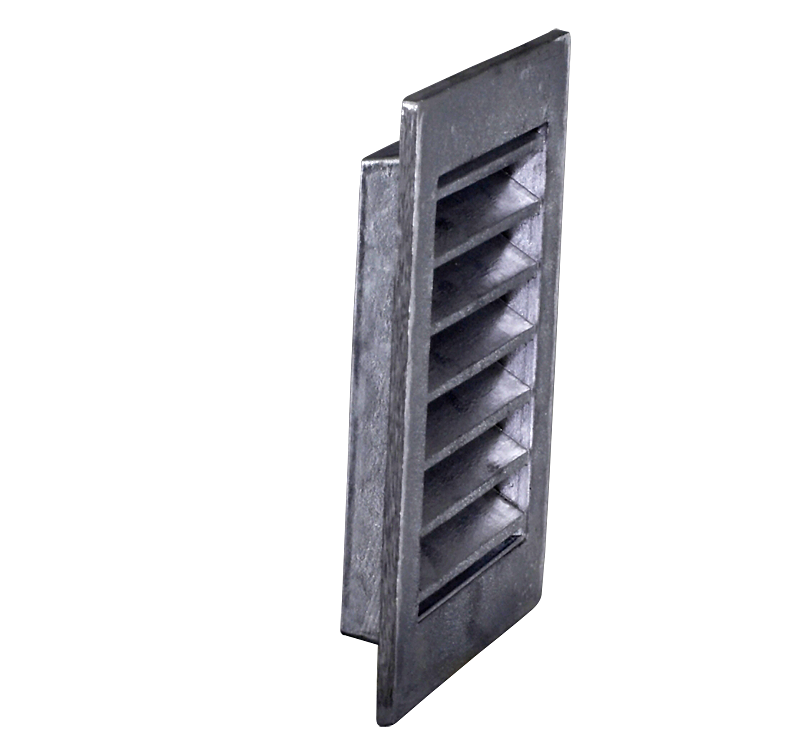

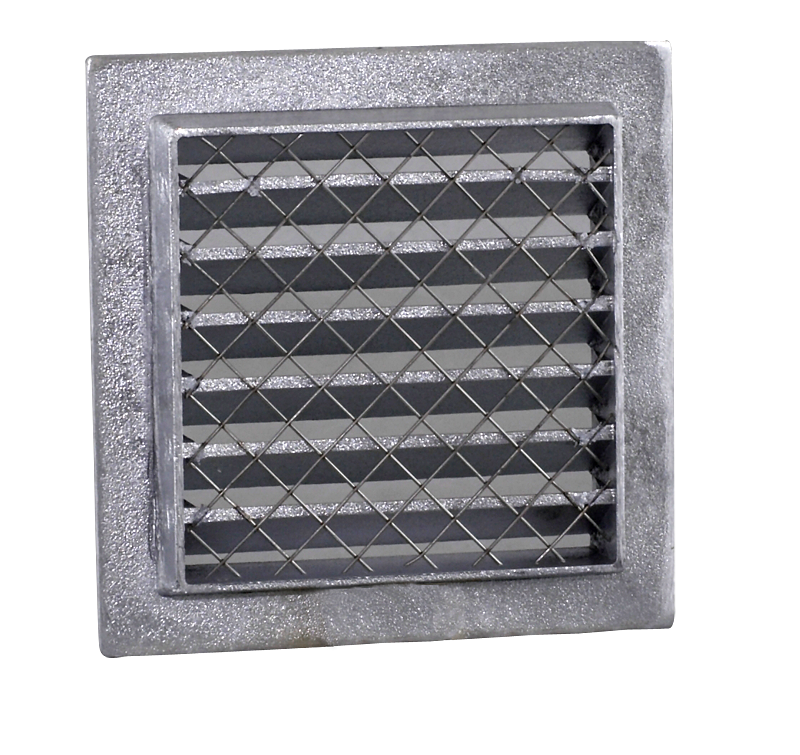

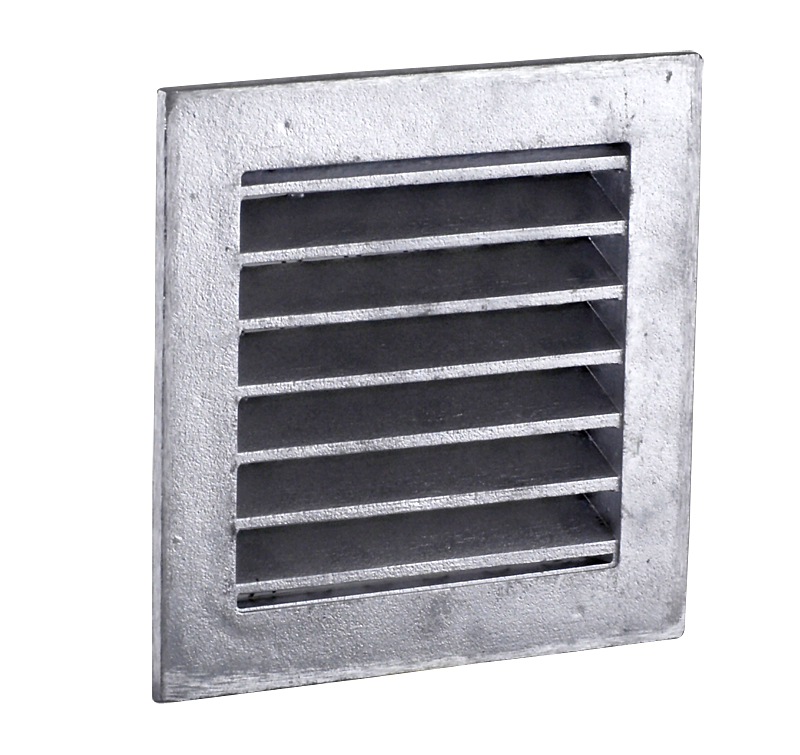

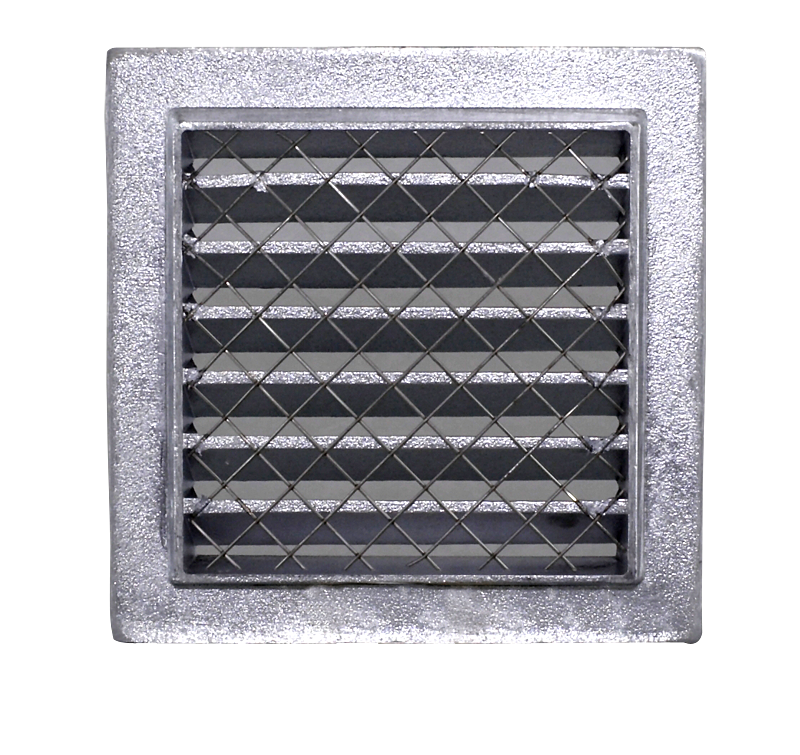

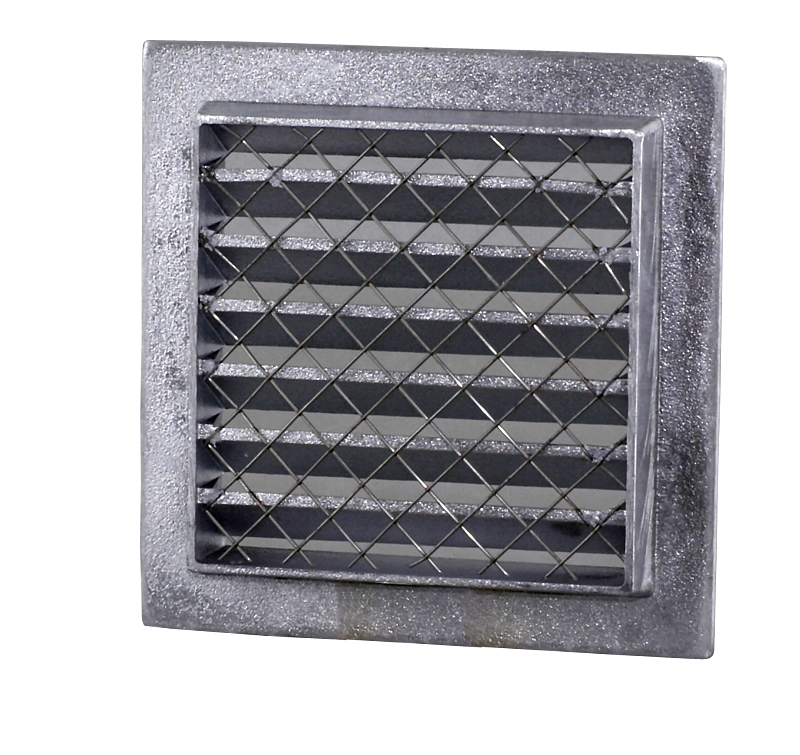

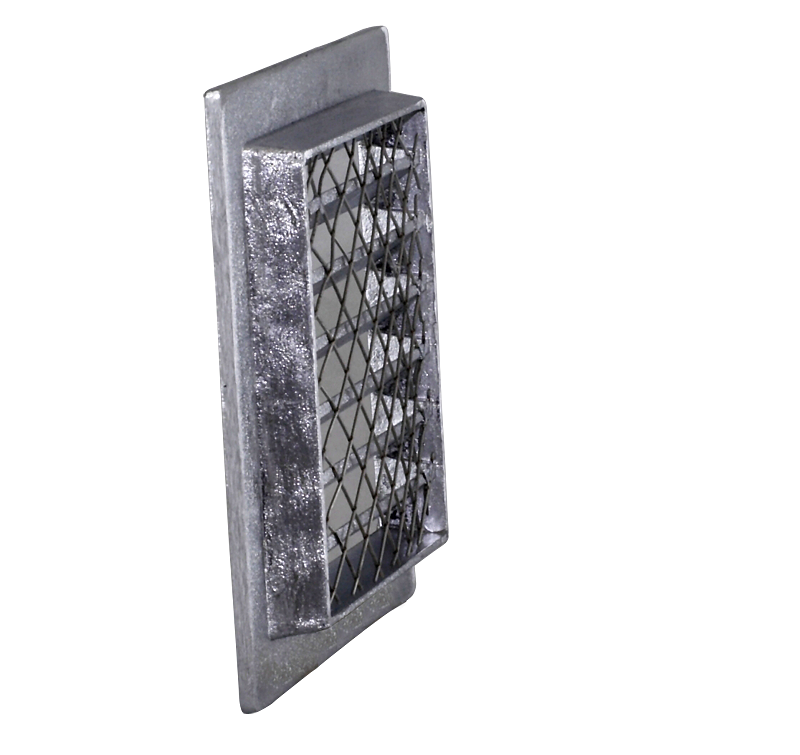

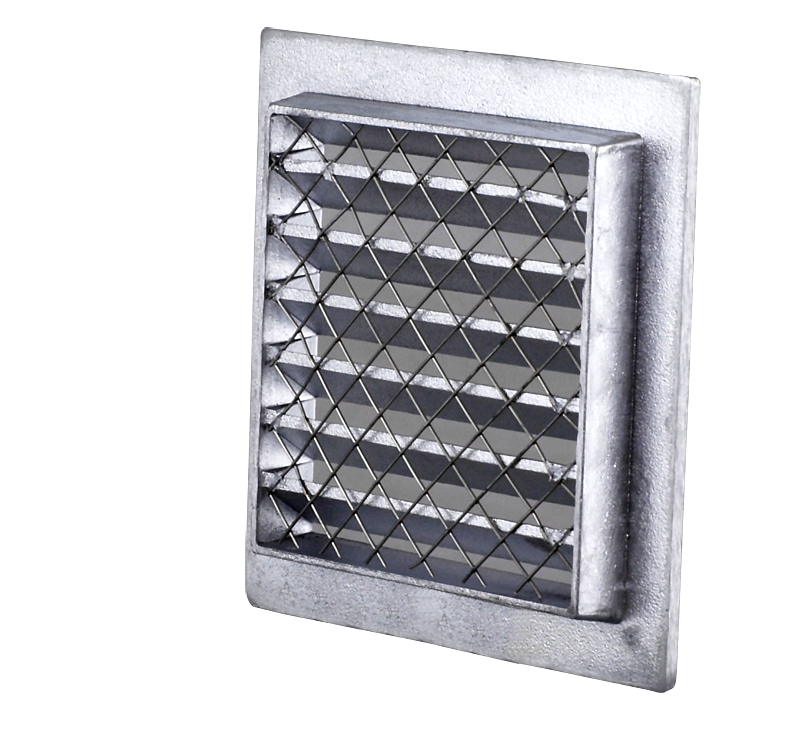

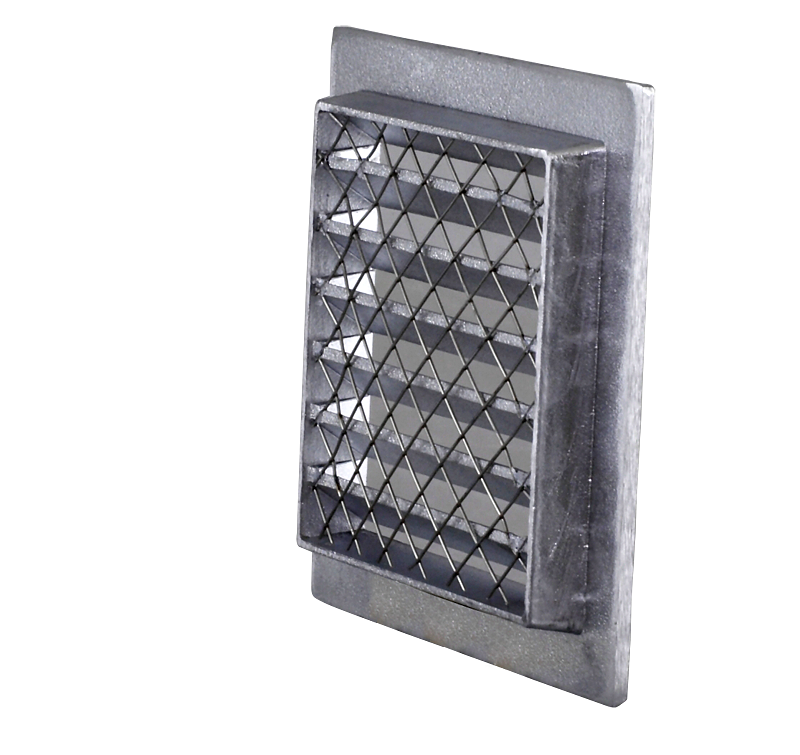

A square ventilation grille suitable for indoor and outdoor installation. The grille is made of aluminum, on the inside it has a stainless mesh with 12x12 mm mesh. At the customer's request, they can be made in any color from the RAL palette.
Dimensions
| Type | B | H | H1 | H2 |
|---|---|---|---|---|
| mm | mm | mm | mm | |
| KWK 100x100 | 100 | 100 | 130 | 130 |
| KWK 125x125 | 125 | 125 | 155 | 155 |
| KWK 150x150 | 150 | 150 | 180 | 180 |
| KWK 200x200 | 200 | 200 | 230 | 230 |
